Airtec ZDM 10/100. ISO 6432 cylinders, double acting, piston 10 mm, stroke 100 mm
€30.01
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-ZDM-10/100
Manufacturer Nr.
ZDM 10/100
ISO 6432 cylinders, double acting, piston 10 mm, stroke 100 mm
Frequently Bought Together
-
This Item:
€30.01Excl. 19% VAT , excl. Shipping Cost
-
Airtec ZDPMK 25/25. ISO 6432 cylinders, double acting, piston 25 mm, stroke 25 mm
€60.65Excl. 19% VAT , excl. Shipping Cost
-
Airtec ZDMK 20/40. ISO 6432 cylinders, double acting, piston 20 mm, stroke 40 mm
€49.24Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X
| Piston diameter [mm] | 10 |
| Stroke [mm] | 100 |
| Version | Standard |
| A (piston rod thread) | M 4 |
| B (fastening thread) | M 12x1,25 |
| G (compressed air port) | M 5 |
| A1 [mm] | 4 |
| C [mm] | 16 |
| D [mm] | 8 |
| E [mm] | 4 |
| F [mm] | 12 |
| G [mm] | 64 |
| K [mm] | 16 |
| L [mm] | 12 |
| M [mm] | 86 |
| N [mm] | 6 |
| P [mm] | 46 |
| Manufacturer Nr. | ZDM 10/100 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571811167 |
| Weight | 7.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Airtec ZDPMK 25/400. ISO 6432 cylinders, double acting, piston 25 mm, stroke 400 mm
€82.91
Excl. 19% VAT ,
excl. Shipping Cost
EMC ZDM 20/50 E. ISO 6432 cylinders, double acting, piston 20 mm, stroke 50 mm
€27.81
Excl. 19% VAT ,
excl. Shipping Cost
EMC ZDPM 25/50 E. ISO 6432 cylinders, double acting, piston 25 mm, stroke 50 mm
€36.83
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDPM 16/25. ISO 6432 cylinders, double acting, piston 16 mm, stroke 25 mm
€41.50
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDM 8/50. ISO 6432 cylinders, double acting, piston 8 mm, stroke 50 mm
€27.97
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDMO 20/125. ISO 6432 cylinders, double acting, piston 20 mm, stroke 125 mm
€72.13
Excl. 19% VAT ,
excl. Shipping Cost

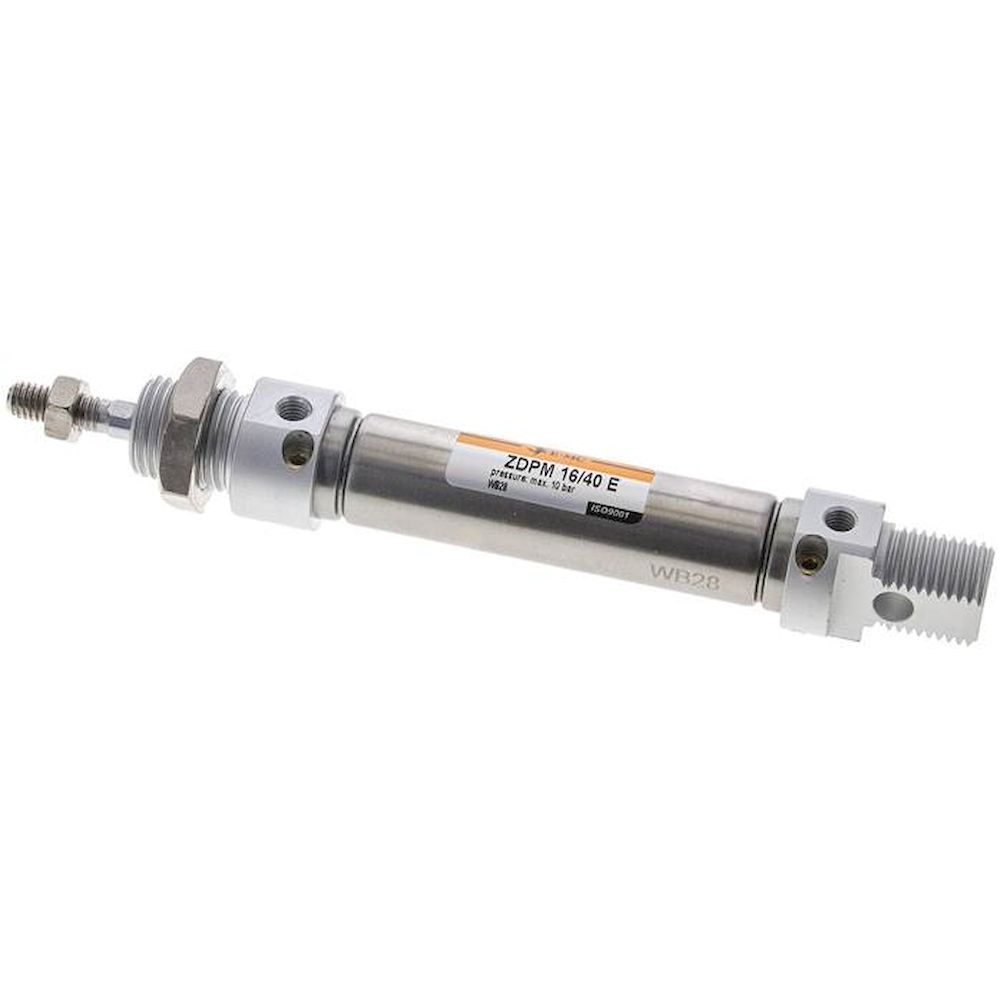

EMC ZDPM 16/40 E. ISO 6432 cylinders, double acting, piston 16 mm, stroke 40 mm
