Guide cylinder, with slide bearing, pistons 63mm,stroke 25mm
€599.59
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-045890
Manufacturer Nr.
ZDFM 63/25 G
Guide cylinder, with slide bearing, pistons 63mm,stroke 25mm
Frequently Bought Together
-
This Item:
€599.59Excl. 19% VAT , excl. Shipping Cost
-
EMC SGM 50/50. Guide cylinder, with slide bearing, pistons 50mm, stroke 50mm
€203.17Excl. 19% VAT , excl. Shipping Cost
-
Guide cylinder, with ball bushing, pistons 50mm,stroke 150mm
€1,157.70Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
| Piston diameter [mm] | 63 |
| Stroke [mm] | 25 |
| Version | with slide bearing |
| F (compressed air port) | G 1/4" |
| Repair sets | ZDFM 63 REP |
| lateral force permissible [N] | 295 |
| permissible torque at the end-plate [Nm] | 7,85 |
| A [mm] | 12 |
| B [mm] | 20,0 |
| C [mm] | 25 |
| D [mm] | 20 |
| E1 [mm] | 130 |
| E2 [mm] | 50 |
| E3 [mm] | 56,5 |
| F1 [mm] | 15,0 |
| F2 [mm] | 13 |
| F3 [mm] | 33 |
| G1 [mm] | 148 |
| G2 [mm] | 69 |
| H [mm] | 110 |
| H1 [mm] | 110 |
| L1 [mm] | 49,0 |
| L2 [mm] | 63,0 |
| L3 [mm] | 83,0 |
| M1 [mm] | 150 |
| M2 [mm] | 72 |
| N [mm] | 44 |
| O1 [mm] | 20 |
| O2 [mm] | 10 |
| O3 [mm] | 132 |
| P1 | M 10 |
| P2 | M 8 |
| Q [mm] | 25 |
| R [mm] | 15,0 |
| T1 [mm] | 1,5 |
| T2 [mm] | 1,5 |
| Manufacturer Nr. | ZDFM 63/25 G |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571810955 |
| Weight | 28.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Guide cylinder, with ball bushing, pistons 50mm,stroke 200mm
€1,520.73
Excl. 19% VAT ,
excl. Shipping Cost
EMC SGM 16/75. Guide cylinder, with slide bearing, pistons 16mm, stroke 75mm
€98.35
Excl. 19% VAT ,
excl. Shipping Cost
Guide cylinder, with ball bushing, pistons 20mm,stroke 100mm
€511.27
Excl. 19% VAT ,
excl. Shipping Cost

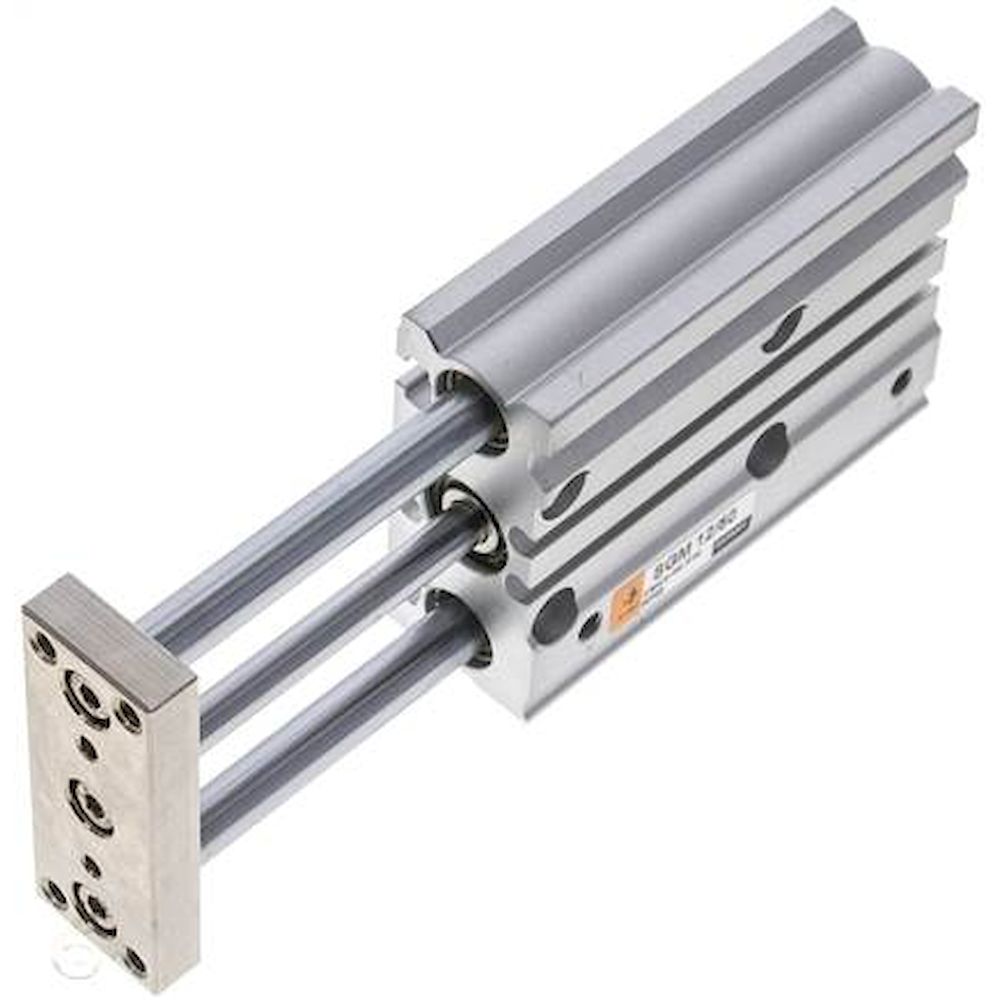

EMC SGM 12/50. Guide cylinder, with slide bearing, pistons 12mm, stroke 50mm
