Airtec XL 80/750. ISO 15552 cylinders, piston 80 mm, stroke 750 mm

Name: Airtec XL 80/750. ISO 15552 cylinders, piston 80 mm, stroke 750 mm
Brand: Airtec
SKU: FL-XL-80/750
Price: 349.69 EUR
Availability: InStock

€349.69

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XL-80/750

Manufacturer Nr.

XL 80/750

ISO 15552 cylinders, piston 80 mm, stroke 750 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

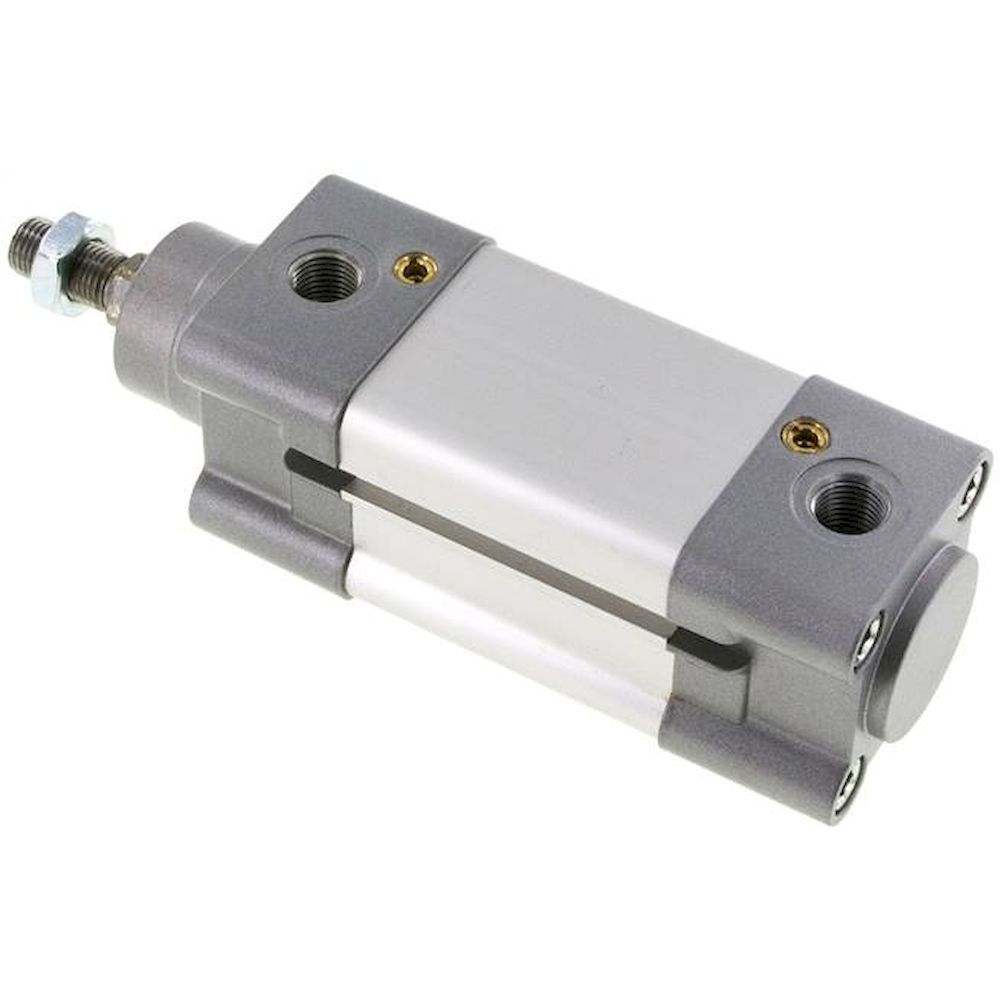

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Airtec XL 80/750. ISO 15552 cylinders, piston 80 mm, stroke 750 mm
€349.69
Excl. 19% VAT , excl. Shipping Cost
Airtec XLK 63/320. ISO 15552 cylinders, piston 63 mm, stroke 320 mm
€312.64
Excl. 19% VAT , excl. Shipping Cost
Airtec XLK 40/320. ISO 15552 cylinders, piston 40 mm, stroke 320 mm
€229.56
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	80
Stroke [mm]	750
Version	Standard
A (thread)	M 20x1,5
G (compressed air port)	G 3/8"
Repair sets	XL 80 REP
B [mm]	25
C [mm]	45
D [mm]	35,0
F [mm]	40
G [mm]	46
H [mm]	174
K [mm]	4
M [mm]	93,5
N [mm]	72,0
CH [mm]	22
RT	M 10
