Airtec XL 40/500-V. ISO 15552 cylinders, piston 40 mm, stroke 500 mm

Name: Airtec XL 40/500-V. ISO 15552 cylinders, piston 40 mm, stroke 500 mm
Brand: Airtec
SKU: FL-XL-40/500-V
Price: 151.51 EUR
Availability: InStock

€151.51

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XL-40/500-V

Manufacturer Nr.

XL 40/500-V

ISO 15552 cylinders, piston 40 mm, stroke 500 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Airtec XL 40/500-V. ISO 15552 cylinders, piston 40 mm, stroke 500 mm
€151.51
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 125 REP. Reparatursatz für XL-Zylinder 125mm
€249.09
Excl. 19% VAT , excl. Shipping Cost

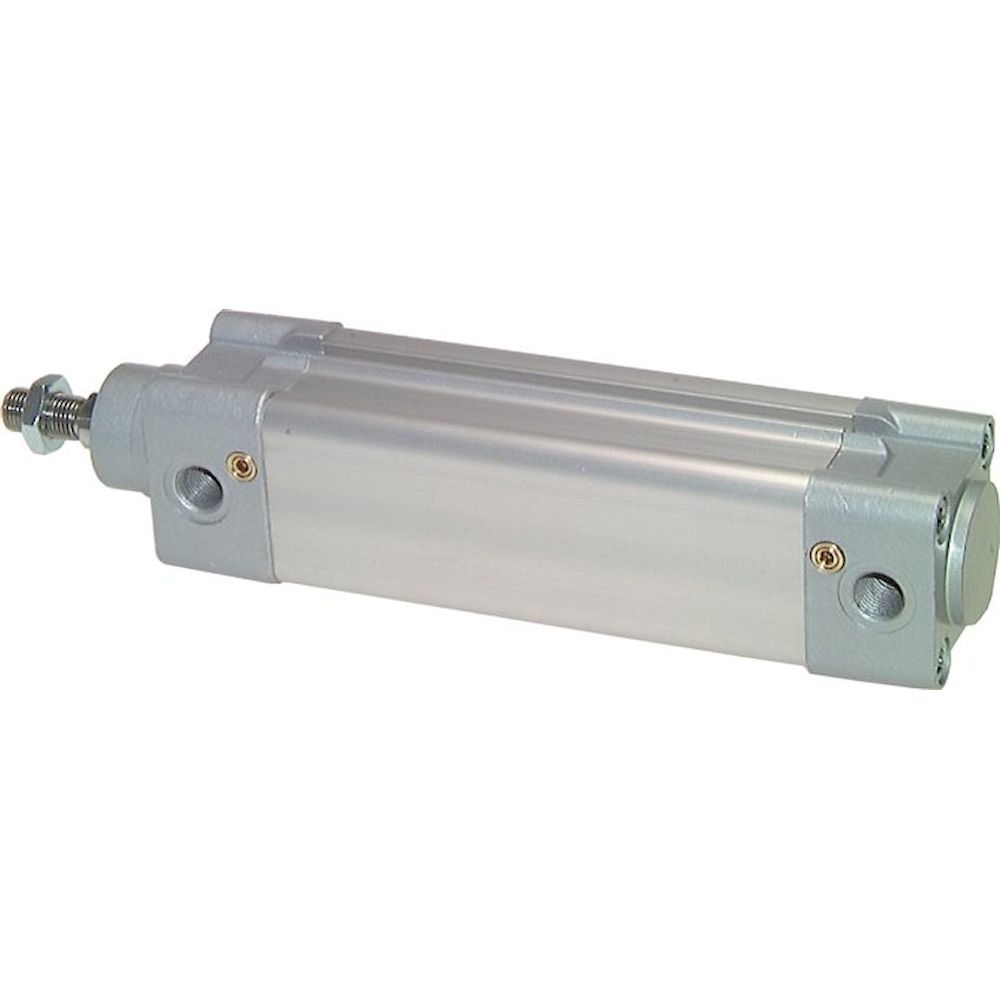

Airtec XL 50/1200. ISO 15552 cylinders, piston 50 mm, stroke 1200 mm
€305.13
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	40
Stroke [mm]	500
Version	FKM seals, no magnetic piston
A (thread)	M 12x1,25
G (compressed air port)	G 1/4"
B [mm]	16
C [mm]	35
D [mm]	22,0
F [mm]	24
G [mm]	30
H [mm]	135
K [mm]	4
M [mm]	54,0
N [mm]	38,0
CH [mm]	13
RT	M 6
