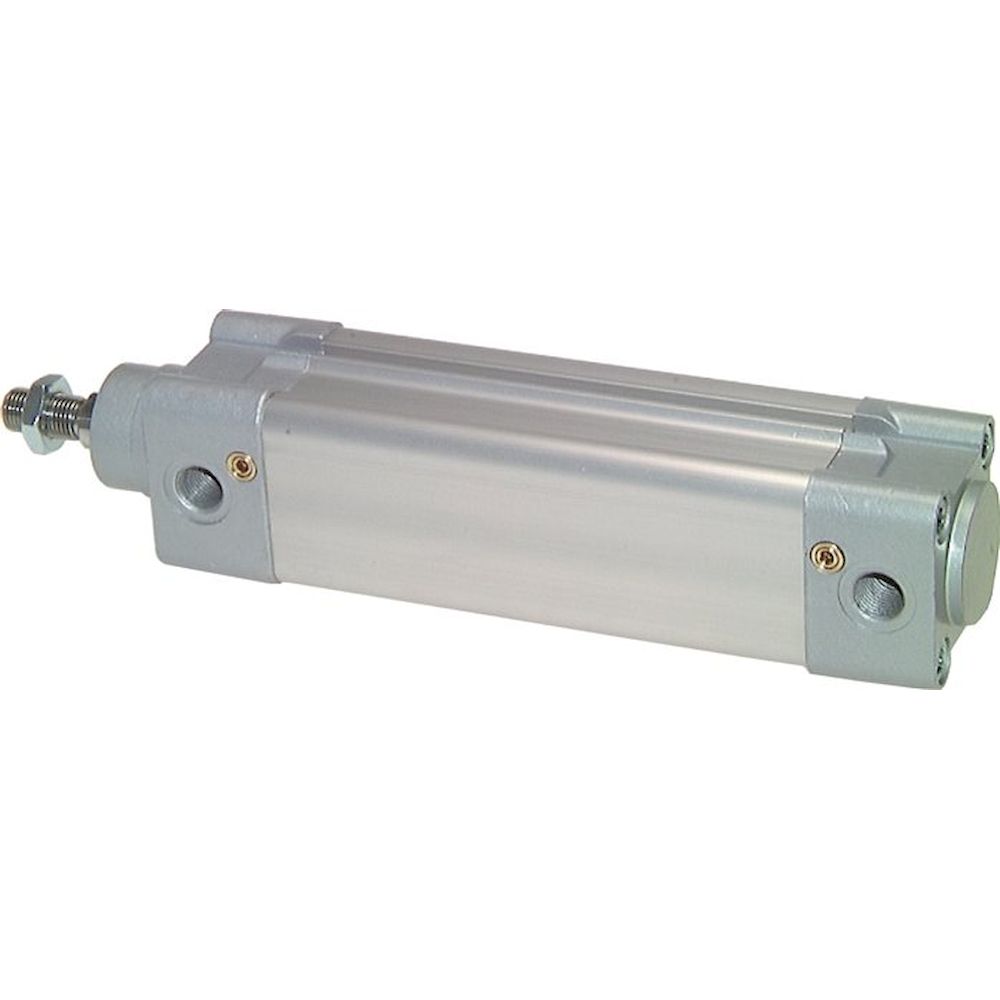

Airtec XL 100/800-EK. ISO 15552 cylinders, piston 100 mm, stroke 800 mm

Name: Airtec XL 100/800-EK. ISO 15552 cylinders, piston 100 mm, stroke 800 mm
Brand: Airtec
SKU: FL-XL-100/800-EK
Price: 531.17 EUR
Availability: InStock

€531.17

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XL-100/800-EK

Manufacturer Nr.

XL 100/800-EK

ISO 15552 cylinders, piston 100 mm, stroke 800 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Airtec XL 100/800-EK. ISO 15552 cylinders, piston 100 mm, stroke 800 mm
€531.17
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 63/40. ISO 15552 cylinders, piston 63 mm, stroke 40 mm
€130.24
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 100/400. ISO 15552 cylinders, piston 100 mm, stroke 400 mm
€275.44
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	100
Stroke [mm]	800
Version	Stainless steel piston rods
A (thread)	M 20x1,5
G (compressed air port)	G 1/2"
Repair sets	XL 100 REP
B [mm]	25
C [mm]	55
D [mm]	38,0
F [mm]	40
G [mm]	51
H [mm]	189
K [mm]	4
M [mm]	110,0
N [mm]	89,0
CH [mm]	22
RT	M 10

More Information
Manufacturer Nr.	XL 100/800-EK
Manufacturer	Airtec
EAN	4050571797218
Weight	12.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
