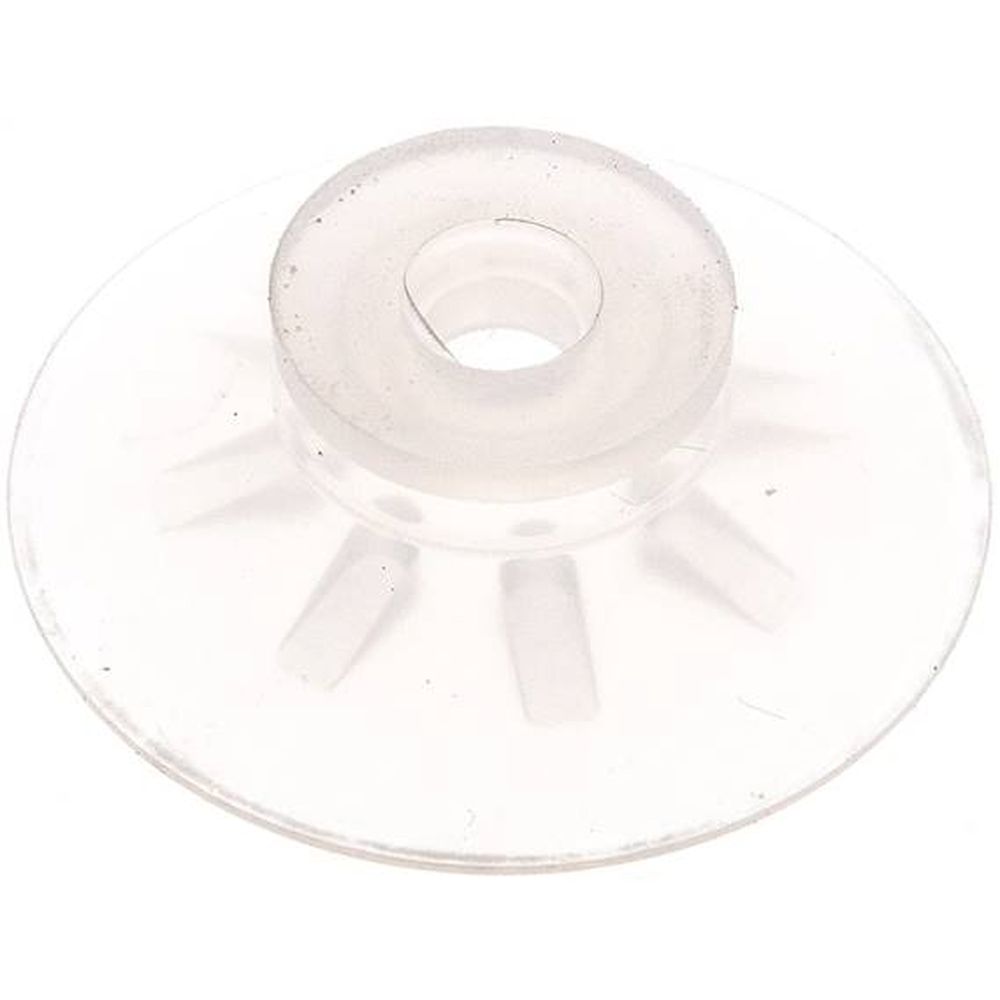

Flat suction cups, support rib, P,series- Ø 42x2mm, Silicone (50A), transparent

CR material:
Description: Chloroprene; temperature range: -40°C up to max. +110°C; wear resistant: fair; resistance to oil: good; Weather and ozone resistance: good; petrol resistance: not recommended; advantage weather resistant; Recommended for: Universal use

NBR material:
Description: Nitrile rubber; temperature range: -30°C up to max. +90°C; wear resistant: fair; resistance to oil: very good; Weather and ozone resistance: not recommended; petrol resistance: fair; Advantage: oil-resistant, water-resistant up to max. 70°C; recommendation for: Universal use

Material silicone:
Description: Silicone rubber; Temperature range: -40°C up to max. +200°C; wear resistant: not recommended; oil resistance: not recommended; Weather and ozone resistance: very good; petrol resistance: not recommended; advantage Temperature resistant, very flexible; Recommended for: Food, electronics

PUR material:
Description: Polyurethane; Temperature range: -20°C up to max. +80°C; wear resistant: good; oil resistance: very good; Weather and ozone resistance: fair; petrol resistance: good; advantage: long service life; recommended for: harsh operating conditions, automobile

NR material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage flexible, wear-resistant; recommended for: Wood, uneven surfaces

NRE material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage very flexible, wear-resistant; recommended for: Wood, uneven surfaces

SBR material:
Description: Styrene-butadiene rubber; temperature range: -30°C up to max. +80°C; wear resistant: very good; oil resistance: not recommended; Weather and ozone resistance: fair; petrol resistance: fair; Advantage: non-marking, very flexible, very abrasion resistant; recommended for: Wood, uneven surfaces

Scope of delivery:
1 pc Suction cup (bracket must be ordered separately)

Material	Silicone (50A)
D [mm]	Ø 42
Stroke [mm]	2
colour	transparent
Connection (female thread)	G 1/8"
Bracket	VSPH D18 I
Retaining ring TPU (optional)	VSPH D18 I HR
D1 [mm]	7,0
D2 [mm]	20,0
h [mm]	13,5
H [mm]	21
Temperature range [°C]	-40 to +200
Bracket type	D
