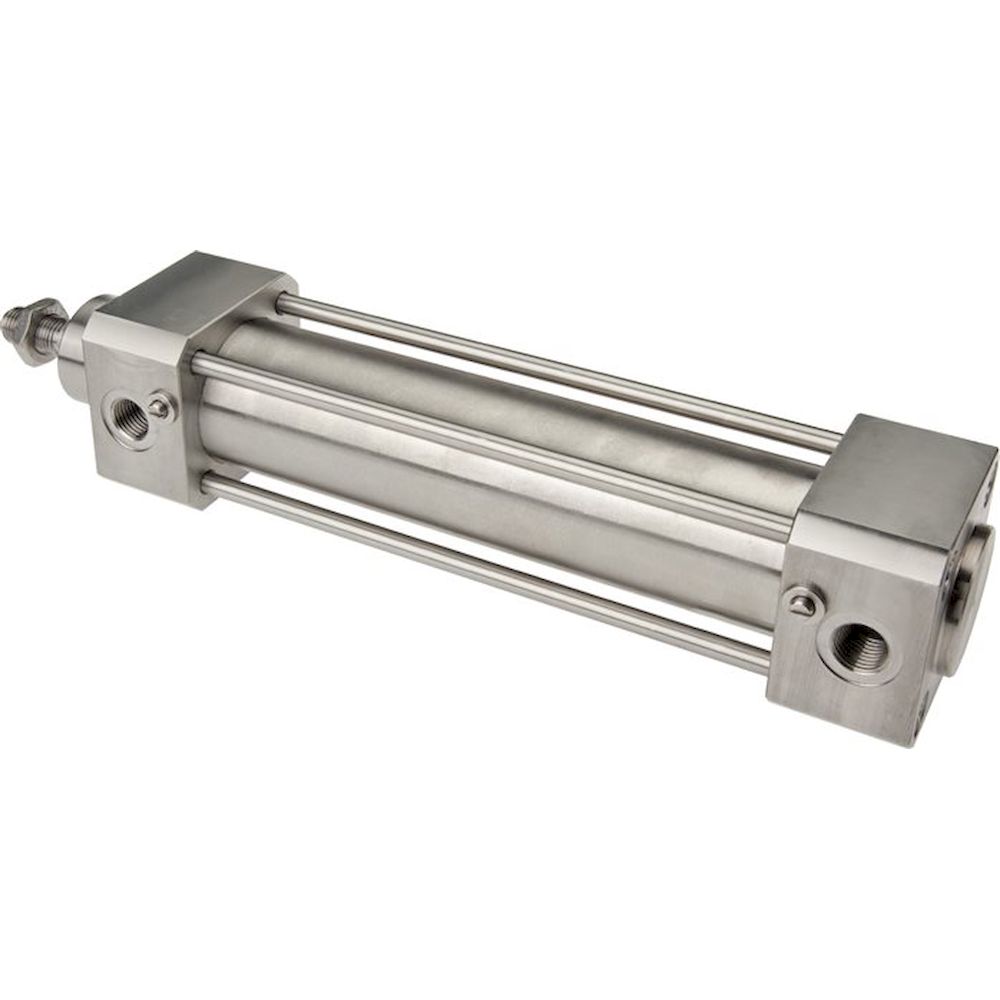

Airtec TM 40/50 ES. ISO 15552-stainless steel cylinder, 40, stroke 50 mm

Name: Airtec TM 40/50 ES. ISO 15552-stainless steel cylinder, 40, stroke 50 mm
Brand: Airtec
SKU: FL-TM-40/50-ES
Price: 338.35 EUR
Availability: InStock

€338.35

Excl. 19% VAT , excl. Shipping Cost

Article

FL-TM-40/50-ES

Manufacturer Nr.

TM 40/50 ES

ISO 15552-stainless steel cylinder, 40, stroke 50 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Airtec TM 40/50 ES. ISO 15552-stainless steel cylinder, 40, stroke 50 mm
€338.35
Excl. 19% VAT , excl. Shipping Cost
Airtec TM 63/125 ES. ISO 15552-stainless steel cylinder, 63, stroke 125 mm
€607.46
Excl. 19% VAT , excl. Shipping Cost
Airtec TM 40/160 ES. ISO 15552-stainless steel cylinder, 40, stroke 160 mm
€353.53
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head, base and cylinder pipe: 1.4301, piston rod: 1.4401, seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
C in combination with mounting E1

Piston diameter [mm]	40
Stroke [mm]	50
A (piston rod thread)	M 12x1,25
G (compressed air port)	G 1/4"
B [mm]	16
C [mm]	35
D [mm]	22,0
F [mm]	24
G [mm]	30
H [mm]	135
K [mm]	4
M [mm]	55
N [mm]	38,0
CH [mm]	13
RT	M 6
