EMC SQN 80/20 SZ. Compact cylinders, double acting, piston 80 mm, stroke 20 mm
€76.69
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SQN-80/20-SZ
Manufacturer Nr.
SQN 80/20 SZ
Compact cylinders, double acting, piston 80 mm, stroke 20 mm
Frequently Bought Together
-
This Item:
€76.69Excl. 19% VAT , excl. Shipping Cost
-
EMC SQN 40/25 SZ. Compact cylinders, double acting, piston 40 mm, stroke 25 mm
€31.78Excl. 19% VAT , excl. Shipping Cost
-
EMC SQN 100/40 SZ. Compact cylinders, double acting, piston 100 mm, stroke 40 mm
€108.96Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2)
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2)
| Piston diameter [mm] | 80 |
| Stroke [mm] | 20 |
| H (piston rod thread) | M 16 |
| G (compressed air port) | G 3/8" |
| Repair sets | SQN 80 REP |
| A [mm] | 63,5 |
| B [mm] | 53,5 |
| C [mm] | 21 |
| D [mm] | 25 |
| E [mm] | 98 |
| F [mm] | 12,5 |
| J [mm] | 6,0 |
| K [mm] | 22 |
| L [mm] | 10,0 |
| M [mm] | 77 |
| N [mm] | 11,0 |
| O [mm] | 17 (11 deep) |
| P | M 12 |
| P1 [mm] | 35,5 |
| Q [mm] | 16,0 |
| Manufacturer Nr. | SQN 80/20 SZ |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571639556 |
| Weight | 13.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
EMC SQN 12/25 SZ. Compact cylinders, double acting, piston 12 mm, stroke 25 mm
€18.99
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQN 50/25 SZ. Compact cylinders, double acting, piston 50 mm, stroke 25 mm
€43.36
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQN 32/80 SZ. Compact cylinders, double acting, piston 32 mm, stroke 80 mm
€40.83
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQN 16/15 SZ. Compact cylinders, double acting, piston 16 mm, stroke 15 mm
€17.39
Excl. 19% VAT ,
excl. Shipping Cost

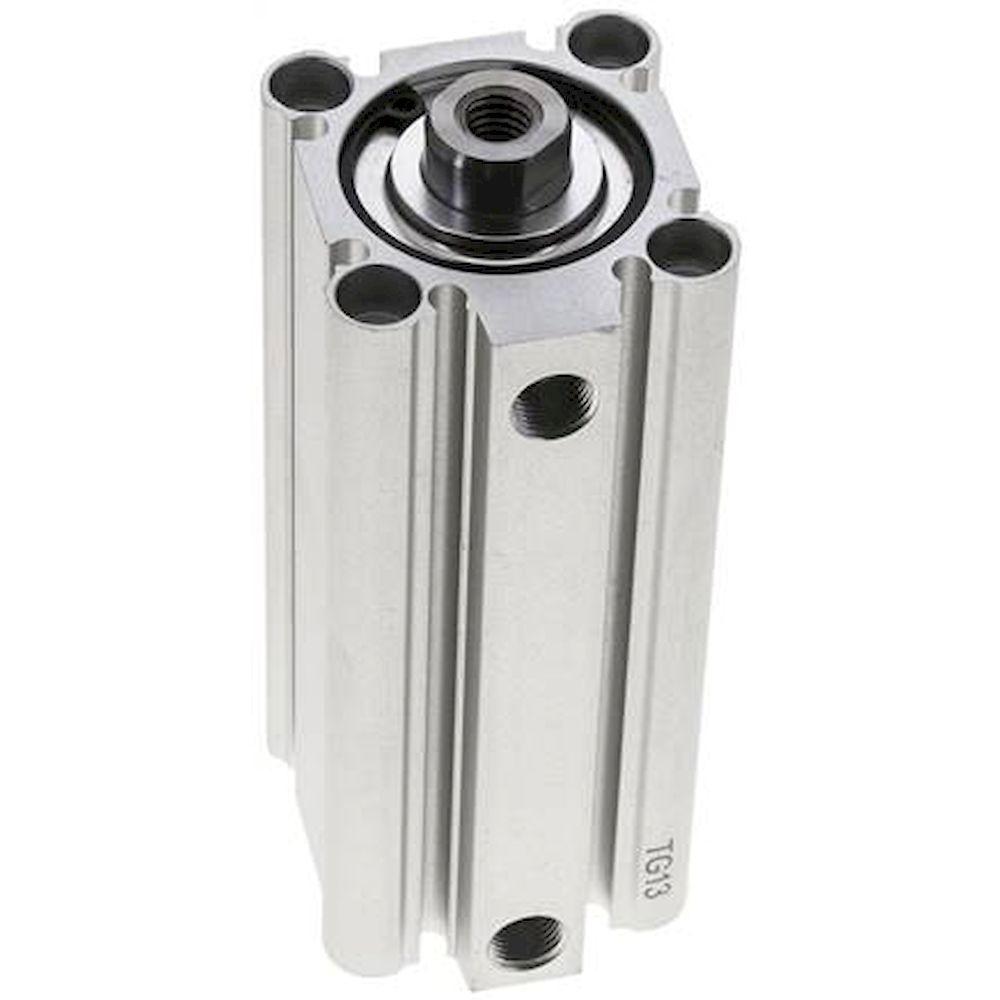

EMC SQN 32/75 SZ. Compact cylinders, double acting, piston 32 mm, stroke 75 mm
