EMC SQN 100/100 SZ. Compact cylinders, double acting, piston 100 mm, stroke 100 mm
€135.61
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SQN-100/100-SZ
Manufacturer Nr.
SQN 100/100 SZ
Compact cylinders, double acting, piston 100 mm, stroke 100 mm
Frequently Bought Together
-
This Item:
€135.61Excl. 19% VAT , excl. Shipping Cost
-
EMC SQ 100/30 SZ. Compact cylinders, double acting, piston 100 mm, stroke 30 mm
€101.40Excl. 19% VAT , excl. Shipping Cost
-
EMC SQN 40/40 SZ. Compact cylinders, double acting, piston 40 mm, stroke 40 mm
€33.79Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2)
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2)
| Piston diameter [mm] | 100 |
| Stroke [mm] | 100 |
| H (piston rod thread) | M 20 |
| G (compressed air port) | G 3/8" |
| Repair sets | SQN 100 REP |
| A [mm] | 75,0 |
| B [mm] | 63,0 |
| C [mm] | 27 |
| D [mm] | 30 |
| E [mm] | 117 |
| F [mm] | 13,0 |
| J [mm] | 6,5 |
| K [mm] | 27 |
| L [mm] | 12,0 |
| M [mm] | 94 |
| N [mm] | 11,0 |
| O [mm] | 17 (11 deep) |
| P | M 12 |
| P1 [mm] | 35,5 |
| Q [mm] | 23,0 |
| Manufacturer Nr. | SQN 100/100 SZ |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571638313 |
| Weight | 4.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

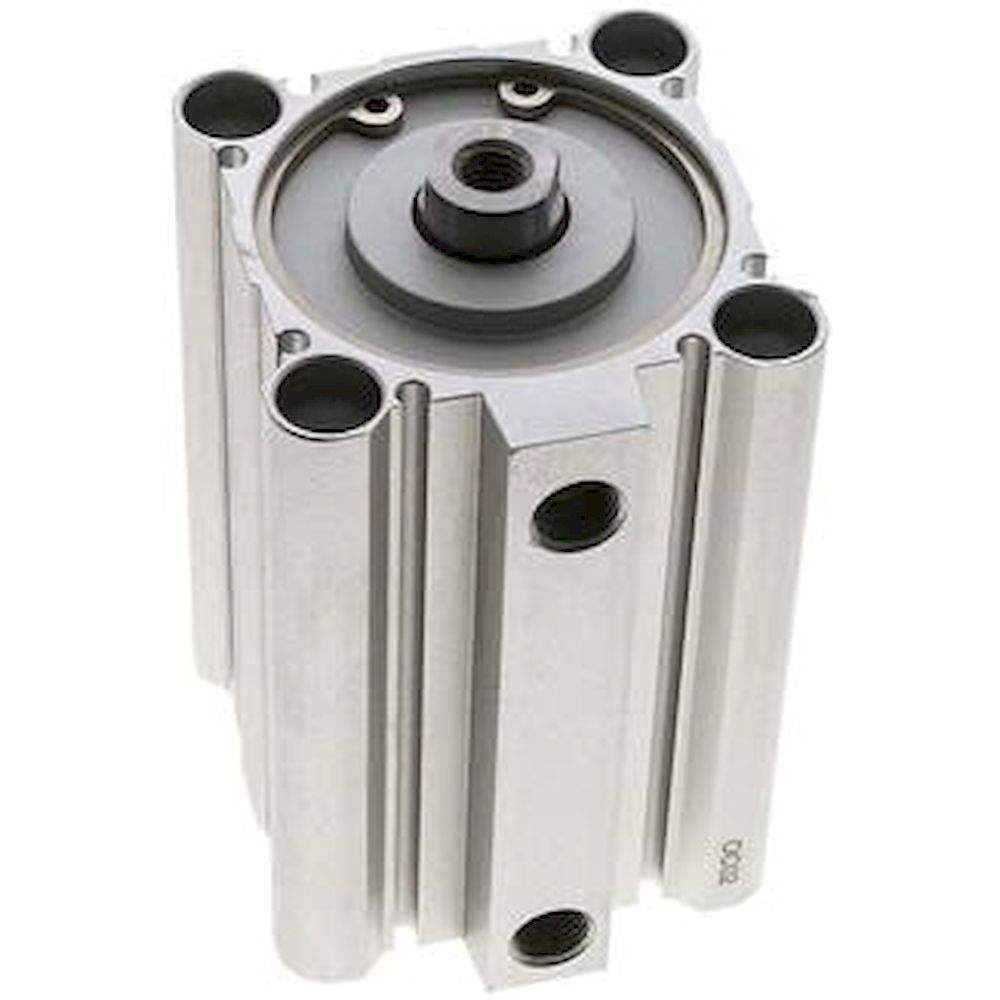

EMC SQN 63/70 SZ. Compact cylinders, double acting, piston 63 mm, stroke 70 mm
