EMC SQKR 16/30. Swivel clamps / clamping cylinder 16 mm, clamping stroke 30mm right turning (turns clockwise at te
€70.08
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SQKR-16/30
Manufacturer Nr.
SQKR 16/30
Swivel clamps / clamping cylinder Ø 16 mm, clamping stroke 30mm right turning (turns clockwise at te
Frequently Bought Together
-
This Item:
€70.08Excl. 19% VAT , excl. Shipping Cost
-

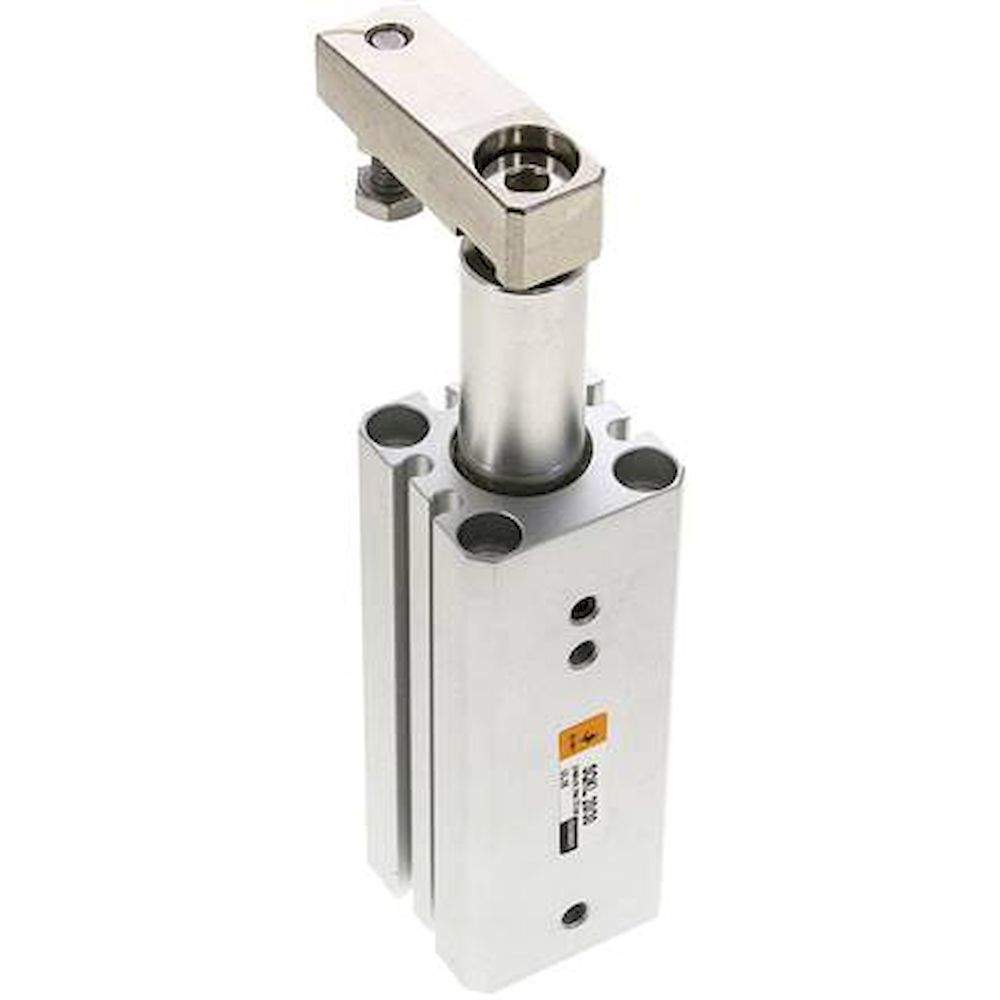

EMC SQKL 20/30. Swivel clamps / clamping cylinder 20 mm, clamping stroke 30mm left turning (turns counter-clockwis
€80.55Excl. 19% VAT , excl. Shipping Cost
-

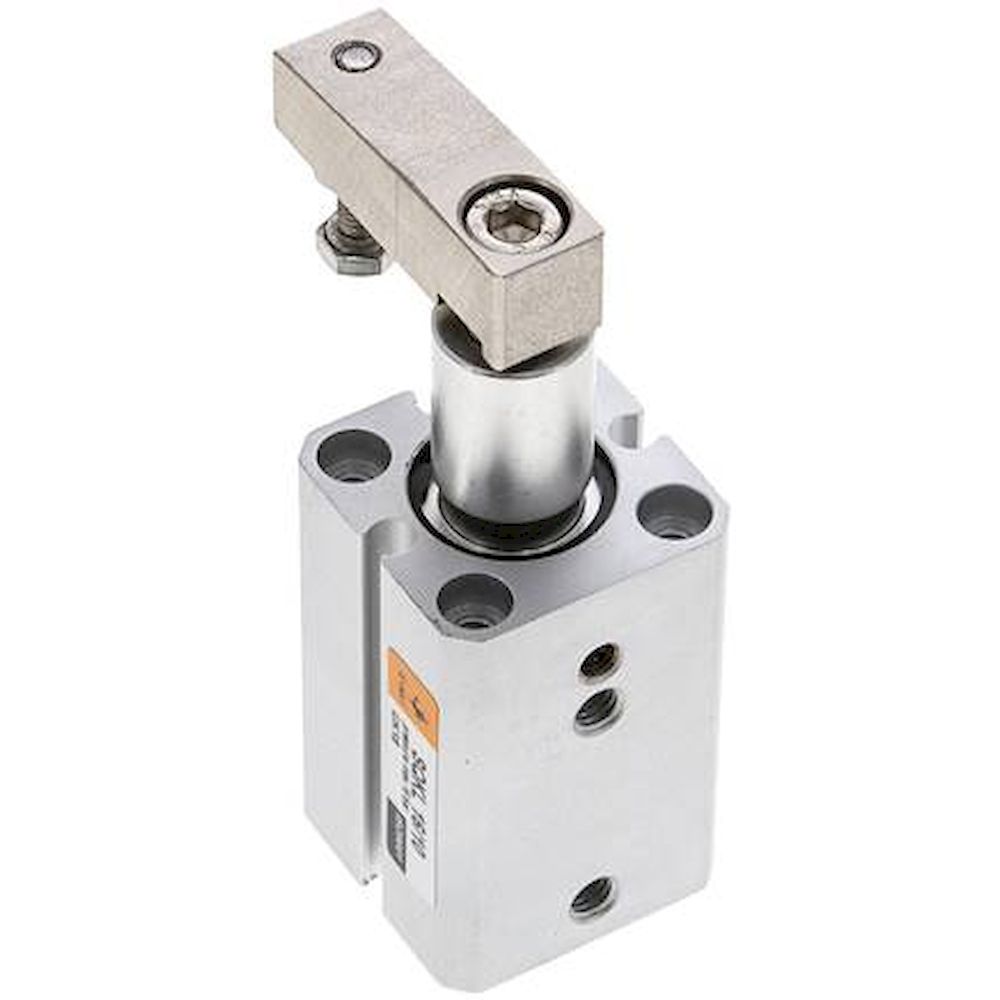

EMC SQKL 16/10. Swivel clamps / clamping cylinder 16 mm, clamping stroke 10mm left turning (turns counter-clockwis
€64.79Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: Aluminium anodised, piston rod: hard chromium plated steel, seals: NBR / PUR
Temperature range:
-10 to +70 °C
Operating pressure:
max. 10 bar
Swivel angle:
90° (± 10°)
Version:
With Magnetic piston
Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process
Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB
Cylinder switch type:
D
Body: Aluminium anodised, piston rod: hard chromium plated steel, seals: NBR / PUR
Temperature range:
-10 to +70 °C
Operating pressure:
max. 10 bar
Swivel angle:
90° (± 10°)
Version:
With Magnetic piston
Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process
Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB
Cylinder switch type:
D
| Version | right turning* (turns clockwise at terminals) |
| Piston diameter [mm] | 16 |
| Clamping stroke [mm] | 30 |
| Rotary lift [mm] | 7,5 |
| effective piston diameter when clamping [mm] | 13,9 |
| G (compressed air port) | M 5 |
| Repair sets | SQK 16 REP |
| A [mm] | 29 |
| B [mm] | 3,0 |
| C [mm] | 20,0 |
| D [mm] | 7 |
| E [mm] | 6 - 16 |
| F [mm] | 5,5 |
| H [mm] | 8 |
| I [mm] | 5 |
| M (retracted) [mm] | 51,5 |
| M (extended) [mm] | 89,0 |
| N [mm] | 11 |
| O [mm] | 36 |
| P [mm] | 25 |
| Q [mm] | 15,5 |
| R [mm] | 35,5 |
| S [mm] | 12,0 |
| U | 11 |
| V | M 4 |
| Y (+0/-0,05) [mm] | 14 |
| Z | M 4 |
| Manufacturer Nr. | SQKR 16/30 |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571930202 |
| Weight | 2.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

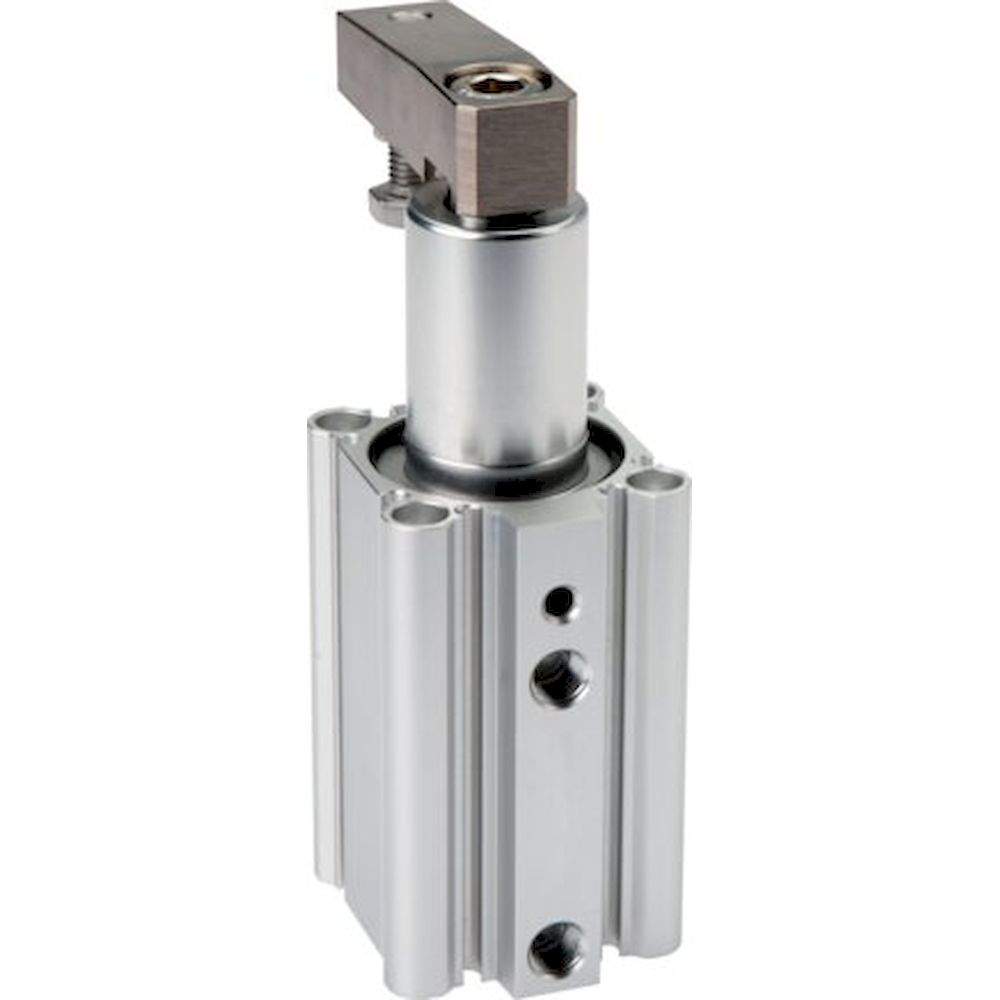

EMC SQK 25 REP. Schwenkspanner / Klemmzylinder Reparatursatz 25mm
