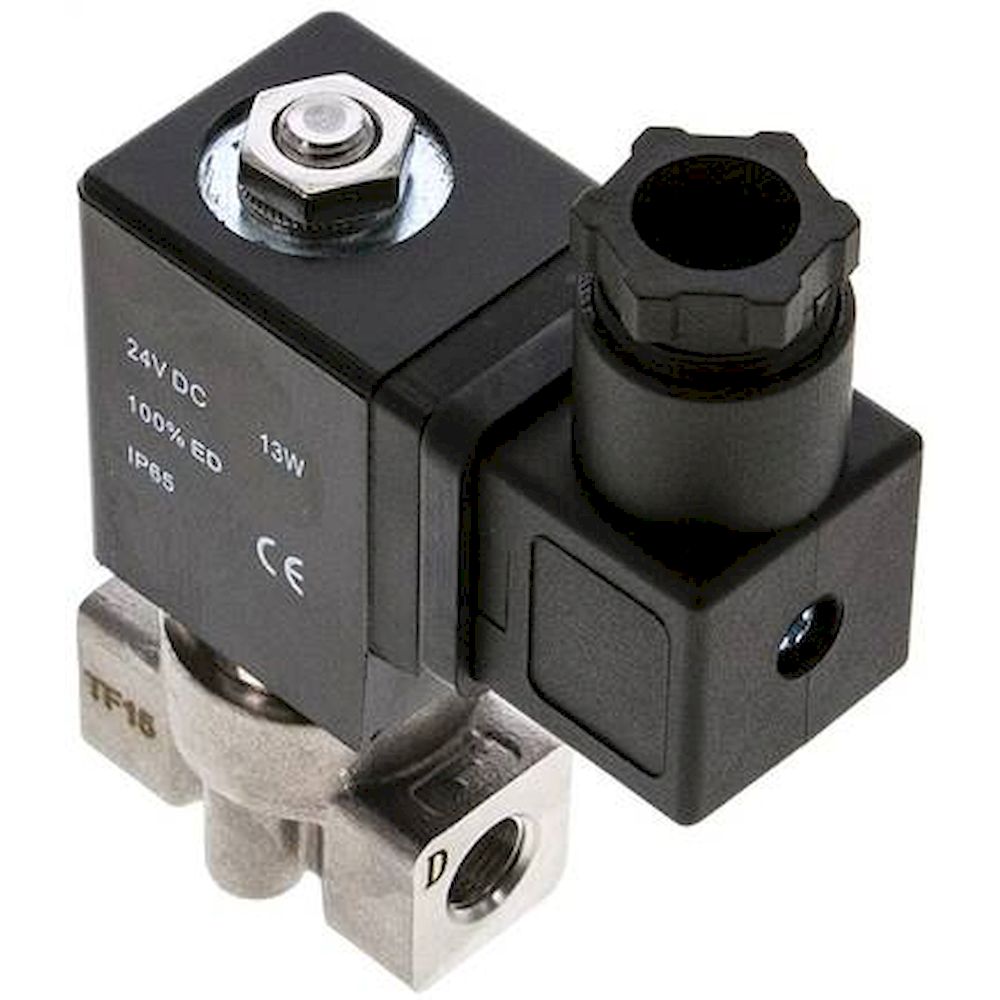

E.MC SLP-114-ES-24V. 2/2-way solenoid valve G 1-1/4", closed (NC) without power,24V DC Eco

Materials:
Bodies: 1.4408, internal parts: stainless steel, seal: FKM

Temperature range:
-20°C to +120°C, ambience: max. +65°C

Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request

Installation position:
With upright magnets

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Structural shape solenoid coil:
P (plug size 3)

Information:
These valves are always supplied with a solenoid coil and a connector plug.

Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
