EMC SGM 25/125. Guide cylinder, with slide bearing, pistons 25mm, stroke 125mm

Name: EMC SGM 25/125. Guide cylinder, with slide bearing, pistons 25mm, stroke 125mm
Brand: E.MC
SKU: FL-SGM-25/125
Price: 155.64 EUR
Availability: InStock

€155.64

Excl. 19% VAT , excl. Shipping Cost

Article

FL-SGM-25/125

Manufacturer: E.MC

Manufacturer Nr.

SGM 25/125

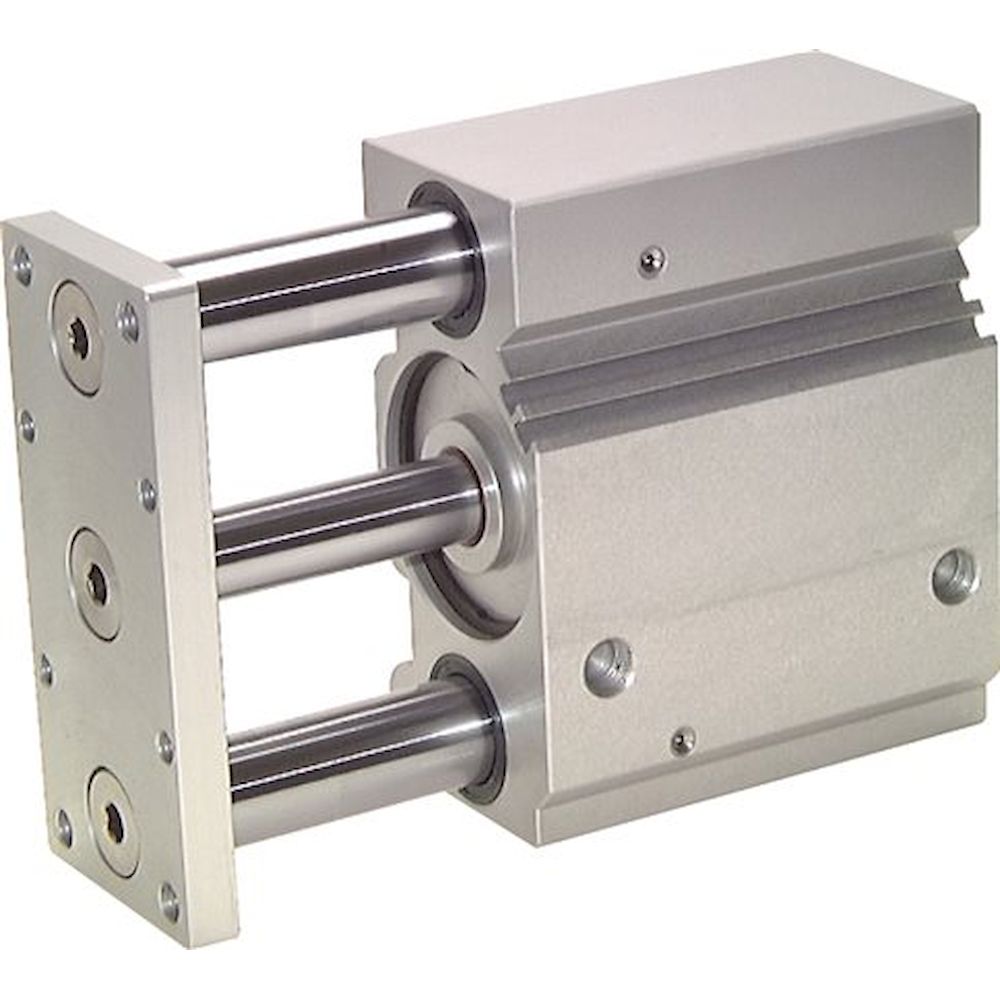

Guide cylinder, with slide bearing, pistons 25mm,stroke 125mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: EMC SGM 25/125. Guide cylinder, with slide bearing, pistons 25mm, stroke 125mm
€155.64
Excl. 19% VAT , excl. Shipping Cost
Guide cylinder, with ball bushing, pistons 32mm,stroke 75mm
€670.24
Excl. 19% VAT , excl. Shipping Cost
EMC SGM 25/50. Guide cylinder, with slide bearing, pistons 25mm, stroke 50mm
€128.35
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM

Piston diameter [mm]	25
Stroke [mm]	125
Version	with slide bearing
G (compressed air port)	G 1/8"
Repair sets	SGM 25 REP
lateral force permissible [N]	68
permissible torque at the end-plate [Nm]	2,26
C [mm]	37,5
D [mm]	16
D1 [mm]	12
E [mm]	51,0
FA [mm]	10
FB [mm]	16
GA [mm]	9,0
GB [mm]	11,5
GC [mm]	13,5
GD [mm]	12,5
GE [mm]	11,5
H [mm]	93
J [mm]	28,5
K [mm]	77
L1 [mm]	6
L2 [mm]	3
M	M 6
M1 [mm]	12
ML [mm]	15
MM	M 6
N [mm]	17
NN [mm]	120
P [mm]	5,2
PA (+0,03 / -0) [mm]	4
PP [mm]	4,5
Q [mm]	26
QL [mm]	78
R (± 0,02) [mm]	34
RR [mm]	64
T [mm]	9.5 (5.5 deep)
V [mm]	50
VA [mm]	8,4
VB [mm]	5,4
VC [mm]	4,5
VD [mm]	3,0
VE [mm]	8,2
W [mm]	42
WA [mm]	82
WB [mm]	30
WL [mm]	91
WW [mm]	38
