Airtec NXDA 25/50. Compact cylinders, double acting, piston 25 mm, stroke 50 mm
€86.19
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NXDA-25/50
Manufacturer Nr.
NXDA 25/50
Compact cylinders, double acting, piston 25 mm, stroke 50 mm
Frequently Bought Together
-
This Item:
€86.19Excl. 19% VAT , excl. Shipping Cost
-
Airtec NXD 40/40-AG. Compact cylinders, double acting, piston 40 mm, stroke 40 mm
€75.42Excl. 19% VAT , excl. Shipping Cost
-
Airtec NXD 25/90-AG. Compact cylinders, double acting, piston 25 mm, stroke 90 mm
€71.10Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 25 |
| Stroke [mm] | 50 |
| Version | non-rotating piston rod |
| M (compressed air port) | M 5 |
| Repair sets | NXD 25 REP |
| A [mm] | 40 |
| B [mm] | 10 |
| C [mm] | 6 |
| D [mm] | 4,2 |
| E | M 5 |
| F [mm] | 7,5 |
| G [mm] | 14 |
| H [mm] | 6 |
| I | M 5 |
| J [mm] | 39,5 |
| K [mm] | 5 |
| L [mm] | 0 |
| N [mm] | 8,0 |
| O [mm] | 12,75 |
| P [mm] | 26 |
| R [mm] | 22 |
| S [mm] | 15,6 |
| T [mm] | 8 |
| U [mm] | 4,5 |
| W [mm] | 5,0 |
| X [mm] | 1,5 |
| Y [mm] | 8 |
| Z [mm] | 5,5 |
| Manufacturer Nr. | NXDA 25/50 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571530402 |
| Weight | 35.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
EMC SES 50/70. Compact cylinders, double acting, piston 50 mm, stroke 70 mm
€59.92
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NXD 80/80-AG. Compact cylinders, double acting, piston 80 mm, stroke 80 mm
€166.44
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NXDK 25/10. Compact cylinders, double acting, piston 25 mm, stroke 10 mm
€66.01
Excl. 19% VAT ,
excl. Shipping Cost
EMC SES 25/15. Compact cylinders, double acting, piston 25 mm, stroke 15 mm
€31.58
Excl. 19% VAT ,
excl. Shipping Cost

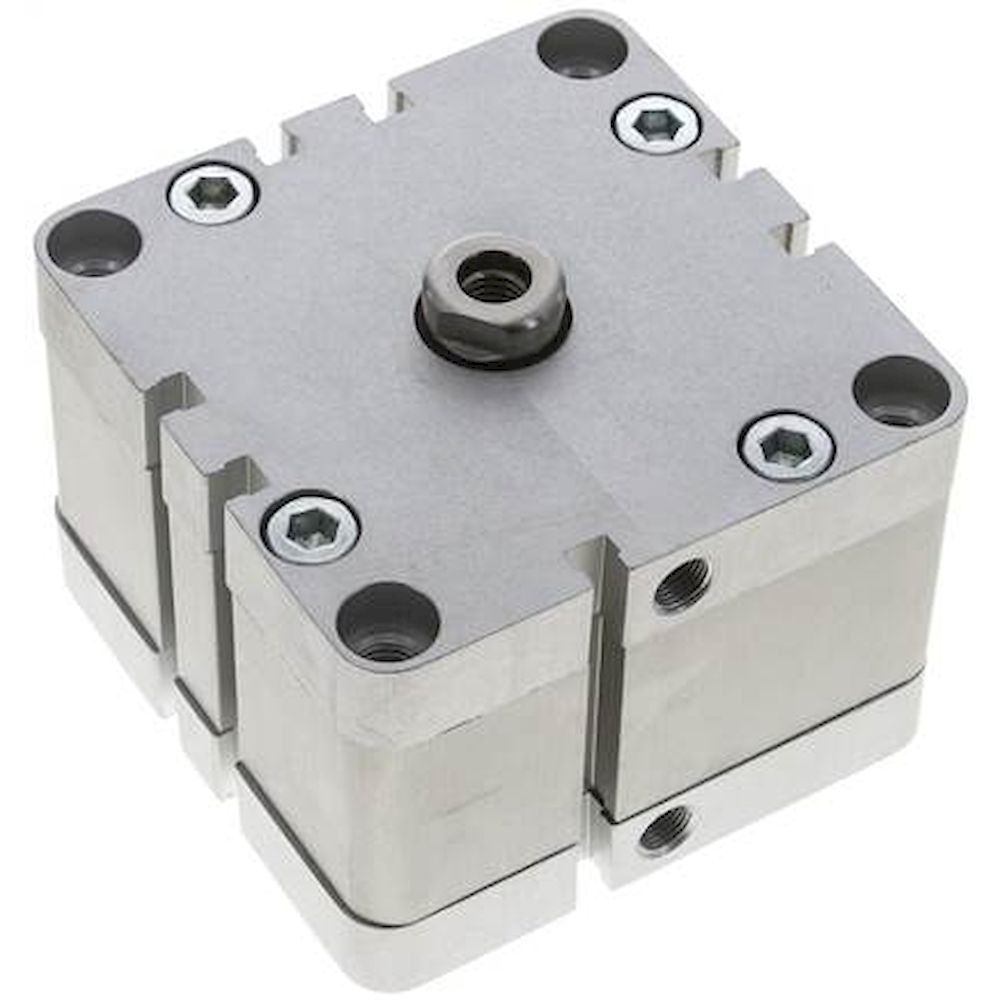

Airtec NXD 80/15. Compact cylinders, double acting, piston 80 mm, stroke 15 mm
