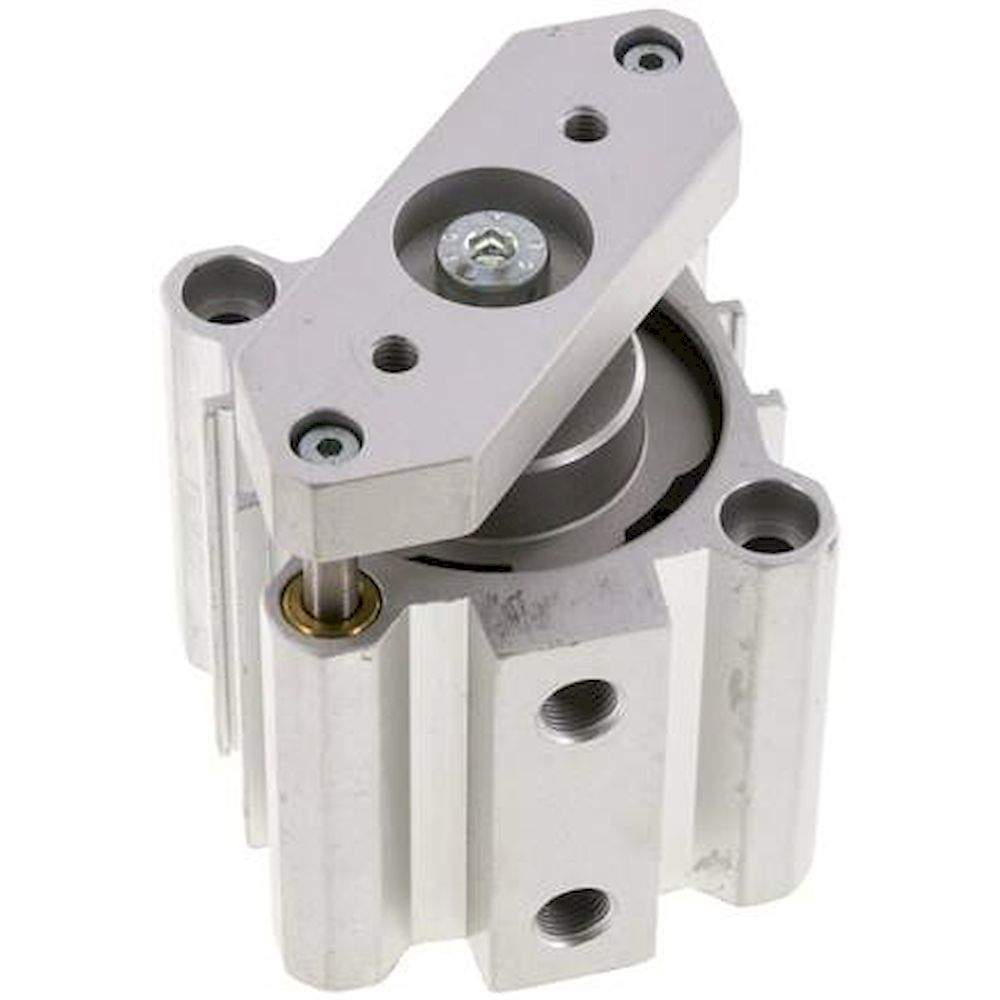

Short stroke cylinder, non-rotating, 25, stroke 20mm

Name: Short stroke cylinder, non-rotating, 25, stroke 20mm
Brand: Fluidics equipment
SKU: FL-037663
Price: 135.11 EUR
Availability: InStock

€135.11

Excl. 19% VAT , excl. Shipping Cost

Article

FL-037663

Manufacturer Nr.

NDM 25/20 A

Short stroke cylinder, non-rotating, 25, stroke 20mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Short stroke cylinder, non-rotating, 25, stroke 20mm
€135.11
Excl. 19% VAT , excl. Shipping Cost
Short stroke cylinder, non-rotating, 32, stroke 10mm
€147.61
Excl. 19% VAT , excl. Shipping Cost
Short stroke cylinder, non-rotating, 32, stroke 80mm
€159.31
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
G

Piston diameter [mm]	25
Stroke [mm]	20
P (compressed air port)	G 1/8"
A [mm]	44,5
B [mm]	40
C2	M 4
D [mm]	10
F [mm]	5,8
G [mm]	9,0
H [mm]	24,5
I [mm]	26
J [mm]	10,5
L [mm]	38,5
M [mm]	15,5
N [mm]	28,0
O [mm]	14,0
Q [mm]	5,7
R [mm]	5,7
S [mm]	42,0
T [mm]	10
V [mm]	8
W [mm]	5,5
X [mm]	22
Y [mm]	11
Z [mm]	15
AA [mm]	5,5
AB [mm]	8

More Information
Manufacturer Nr.	NDM 25/20 A
Manufacturer	Fluidics equipment
EAN	4050571524180
Weight	26.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
