Airtec NAE 100/20-AG. ISO 21287 cylinders, single acting, piston 100 mm, stroke 20 mm
€189.23
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NAE-100/20-AG
Manufacturer Nr.
NAE 100/20-AG
ISO 21287 cylinders, single acting, piston 100 mm, stroke 20 mm
Frequently Bought Together
-
This Item:
€189.23Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAEE 80/5-AG. ISO 21287 cylinders, single acting, piston 80 mm, stroke 5 mm
€235.34Excl. 19% VAT , excl. Shipping Cost
-
EMC SFSBS 50/15-B. ISO 21287 cylinders, single acting, piston 50 mm, stroke 15 mm
€40.61Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 100 |
| Stroke [mm] | 20 |
| Version | Piston rod with male thread |
| KK (piston rod male thread) | M 16x1,5 |
| G (compressed air port) | G 1/8" |
| Repair sets | NAD 100 REP |
| A [mm] | 25 |
| AK [mm] | 28 |
| B [mm] | 12 |
| BG [mm] | 19,5 |
| CH [mm] | 21 |
| E [mm] | 113,5 |
| LA [mm] | 3,0 |
| RT | M 10 |
| TG [mm] | 89,0 |
| WH [mm] | 10 |
| ZA [mm] | 67 |
| ZB [mm] | 77 |
| ZC [mm] | 46 |
| Manufacturer Nr. | NAE 100/20-AG |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571520991 |
| Weight | 22.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Airtec NAEE 32/5. ISO 21287 cylinders, single acting, piston 32 mm, stroke 5 mm
€102.06
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAEE 32/10-AG. ISO 21287 cylinders, single acting, piston 32 mm, stroke 10 mm
€103.65
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAE 50/25. ISO 21287 cylinders, single acting, piston 50 mm, stroke 25 mm
€80.45
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAE 32/15. ISO 21287 cylinders, single acting, piston 32 mm, stroke 15 mm
€61.34
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAE 80/15-AG. ISO 21287 cylinders, single acting, piston 80 mm, stroke 15 mm
€133.02
Excl. 19% VAT ,
excl. Shipping Cost

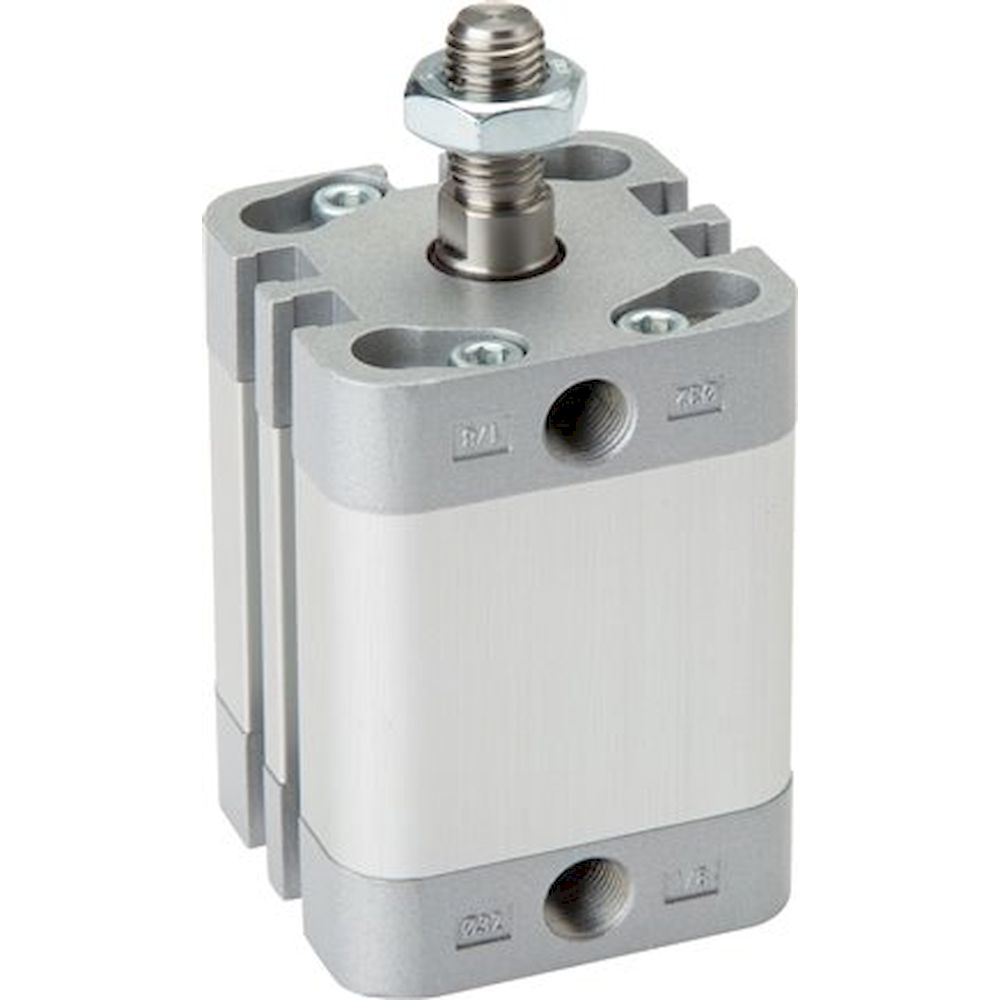

Airtec NAEE 40/5-AG. ISO 21287 cylinders, single acting, piston 40 mm, stroke 5 mm
