Airtec NAE 100/15-AG. ISO 21287 cylinders, single acting, piston 100 mm, stroke 15 mm
€187.35
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NAE-100/15-AG
Manufacturer Nr.
NAE 100/15-AG
ISO 21287 cylinders, single acting, piston 100 mm, stroke 15 mm
Frequently Bought Together
-
This Item:
€187.35Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAEE 63/15. ISO 21287 cylinders, single acting, piston 63 mm, stroke 15 mm
€149.34Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAE 25/25-AG. ISO 21287 cylinders, single acting, piston 25 mm, stroke 25 mm
€50.13Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 100 |
| Stroke [mm] | 15 |
| Version | Piston rod with male thread |
| KK (piston rod male thread) | M 16x1,5 |
| G (compressed air port) | G 1/8" |
| Repair sets | NAD 100 REP |
| A [mm] | 25 |
| AK [mm] | 28 |
| B [mm] | 12 |
| BG [mm] | 19,5 |
| CH [mm] | 21 |
| E [mm] | 113,5 |
| LA [mm] | 3,0 |
| RT | M 10 |
| TG [mm] | 89,0 |
| WH [mm] | 10 |
| ZA [mm] | 67 |
| ZB [mm] | 77 |
| ZC [mm] | 46 |
| Manufacturer Nr. | NAE 100/15-AG |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571520977 |
| Weight | 24.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

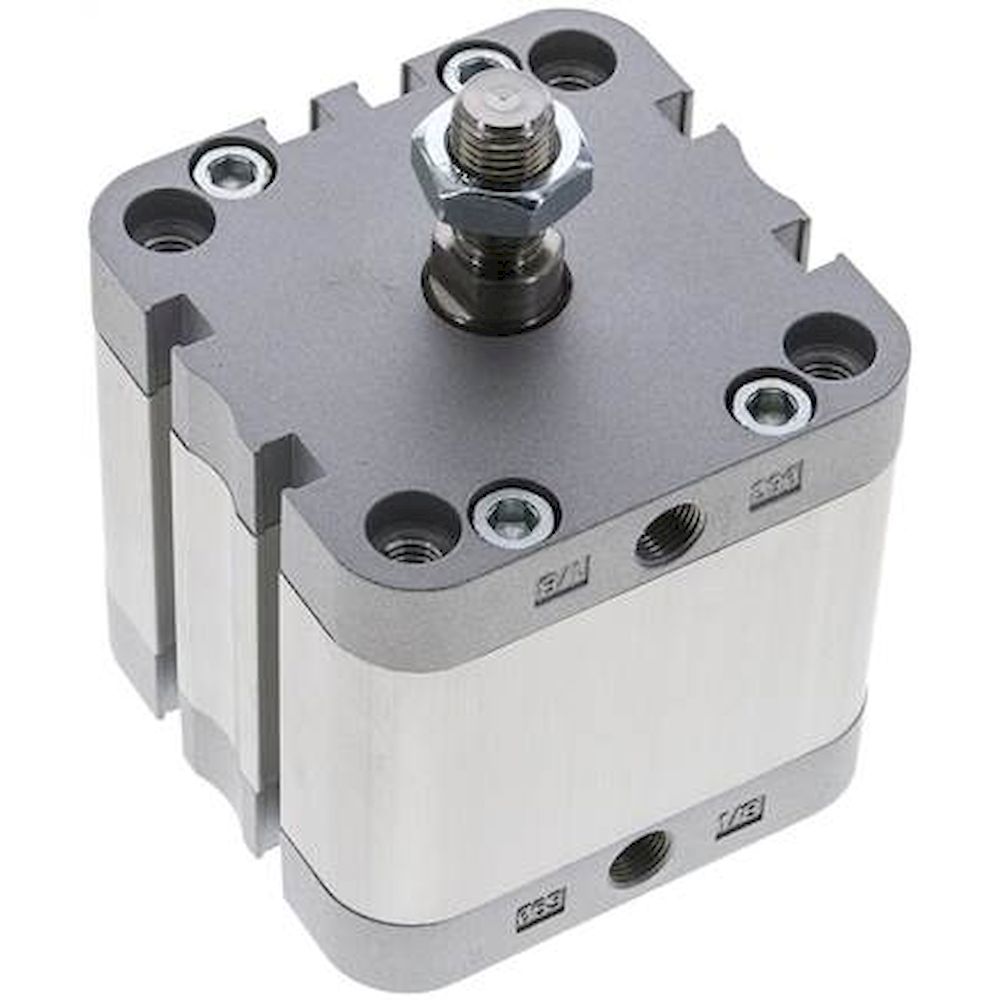

Airtec NAE 63/25-AG. ISO 21287 cylinders, single acting, piston 63 mm, stroke 25 mm
€104.17
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAEE 100/25. ISO 21287 cylinders, single acting, piston 100 mm, stroke 25 mm
€312.79
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAE 20/20-AG. ISO 21287 cylinders, single acting, piston 20 mm, stroke 20 mm
€46.48
Excl. 19% VAT ,
excl. Shipping Cost
EMC SFSBS 40/15-B. ISO 21287 cylinders, single acting, piston 40 mm, stroke 15 mm
€33.68
Excl. 19% VAT ,
excl. Shipping Cost
EMC SFSBS 25/5. ISO 21287 cylinders, single acting, piston 25 mm, stroke 5 mm
€27.81
Excl. 19% VAT ,
excl. Shipping Cost

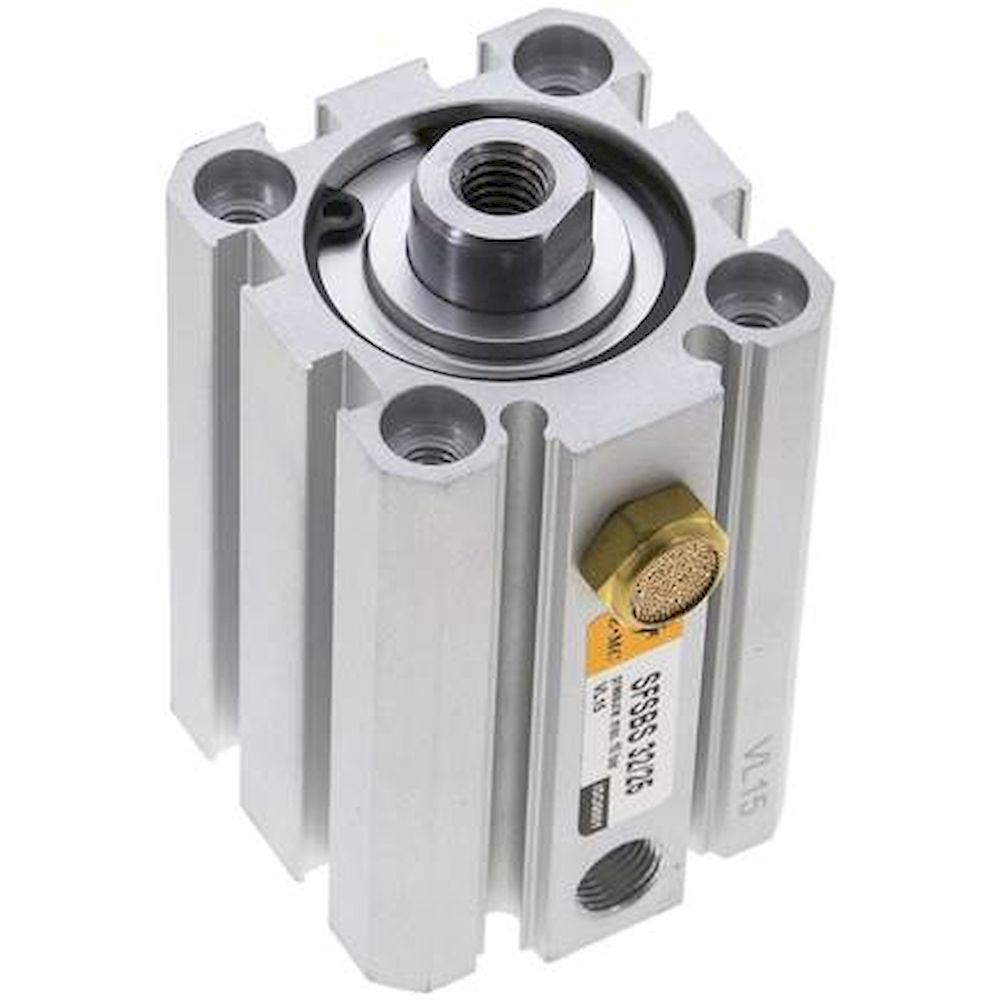

EMC SFSBS 32/25. ISO 21287 cylinders, single acting, piston 32 mm, stroke 25 mm
