3/2-way vacuum valve, G 1/4", -0,9 to 8bar, 24 V DC
€1,120.99
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-067763
Manufacturer Nr.
M 314 VU H 24V=
3/2-way vacuum valve, G 1/4", -0,9 to 8bar, 24 V DC
Frequently Bought Together
-
This Item:
€1,120.99Excl. 19% VAT , excl. Shipping Cost
-

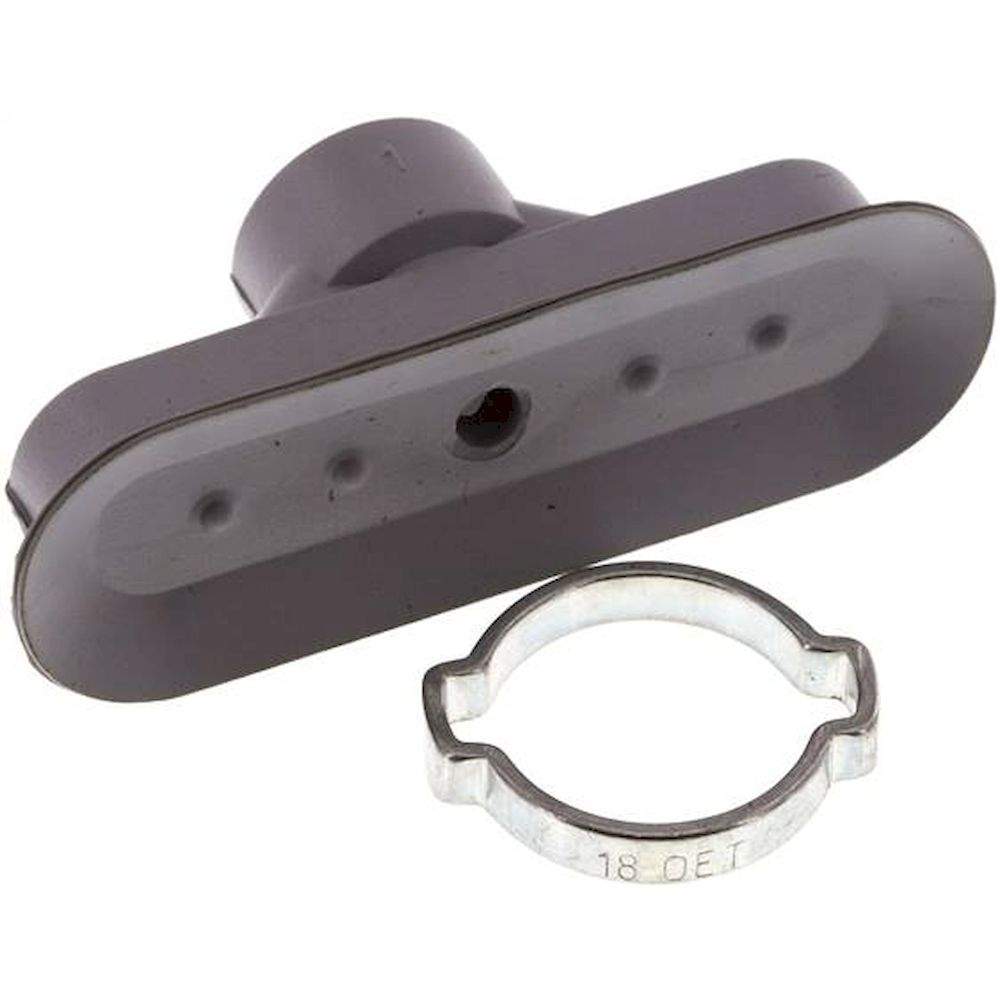

Oval teats, 60 x 20mm, stroke 3mm, NBR (60A), Grey
€29.58Excl. 19% VAT , excl. Shipping Cost
-

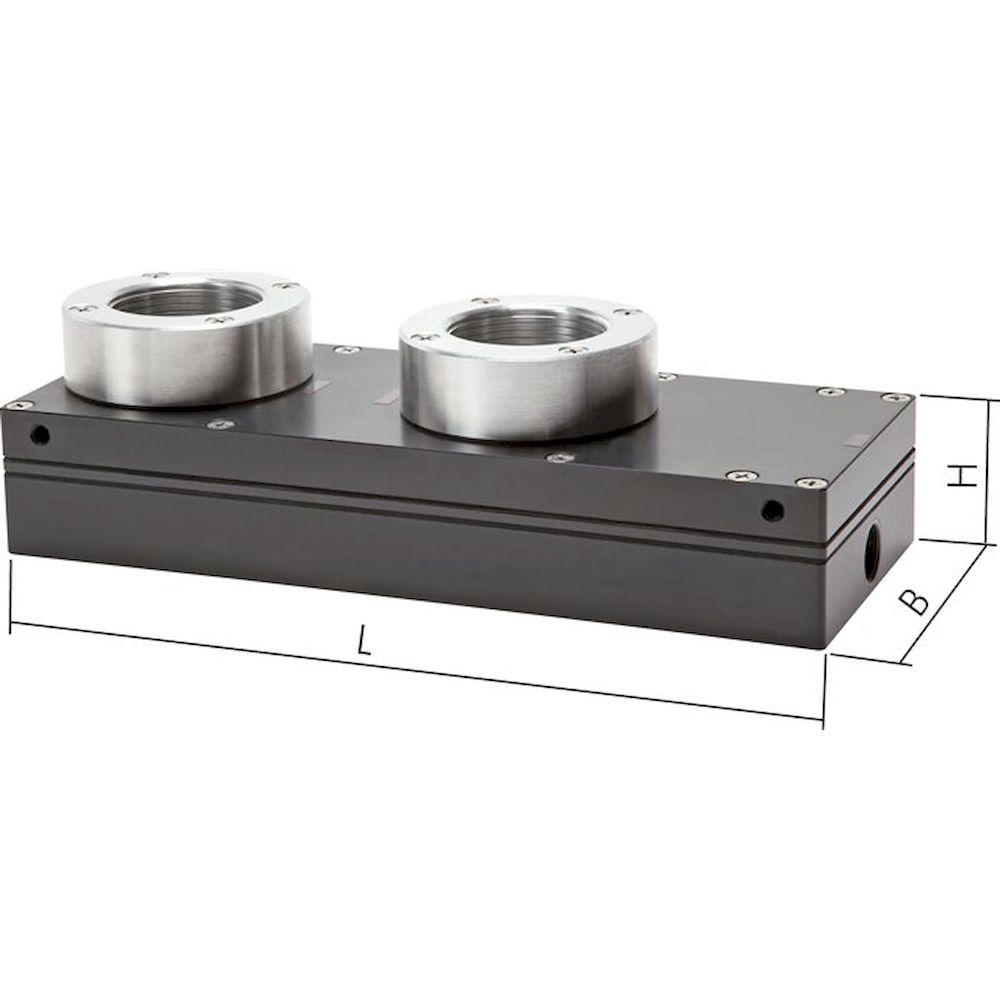

Multi stage ejectors to 70% vacuum, G 2", to 6400 l/min
€3,962.28Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: brass, internal parts: 1.4104, seal: FKM
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (type standard: any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Pressure input:
P (type Universal: possible at every connection)
Vacuum inlet:
P (type Universal: possible at every connection)
Note:
In a standard type, the breathing takes place via the anchor (M 5 female thread).
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: brass, internal parts: 1.4104, seal: FKM
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (type standard: any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Pressure input:
P (type Universal: possible at every connection)
Vacuum inlet:
P (type Universal: possible at every connection)
Note:
In a standard type, the breathing takes place via the anchor (M 5 female thread).
Information:
These valves are always supplied with a solenoid coil and a connector plug.
| Version | universal |
| Control voltage | 24 V DC |
| function | normally closed / open (NC / NO) |
| Thread (2x) | G 1/4" |
| Operating pressure [bar] | -0.9 to 8 |
| DN [mm] | 6 |
| Suction performance [m³/h] | 13 |
| Suction performance [l/min] | 217 |
| Kv value* [l/min] | 8,3 |
| L [mm] | 55 |
| Power consumption (DC) [W] | 18,5 |
| Structural shape solenoid coil | B |
| Spare solenoid coil | MAG B 24V= |
| Manufacturer Nr. | M 314 VU H 24V= |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571478131 |
| Weight | 9.000000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

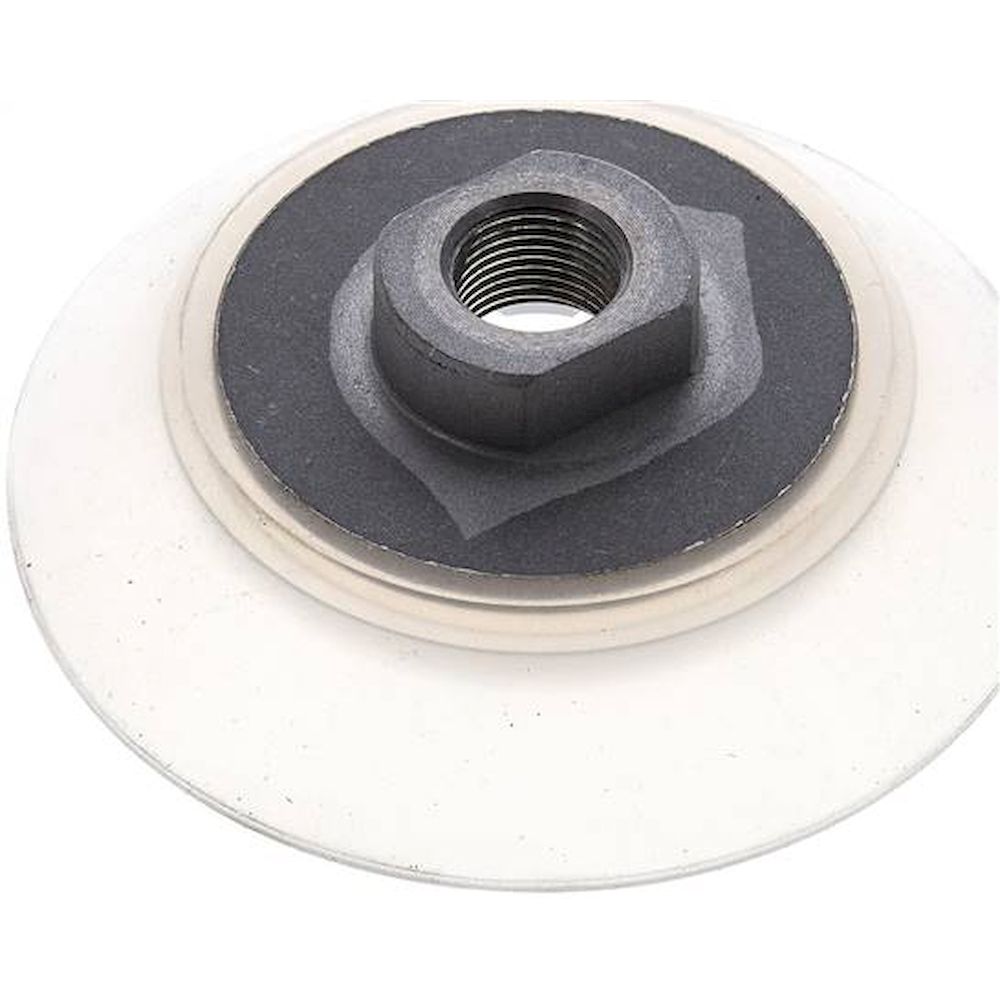

Flat suction cups, Ø 100x9mm, G 3/8", Silicone (50A), transparent
€46.85
Excl. 19% VAT ,
excl. Shipping Cost
Multi stage ejectors to 70% vacuum, G 1-1/2", to 1050 l/min
€1,143.72
Excl. 19% VAT ,
excl. Shipping Cost

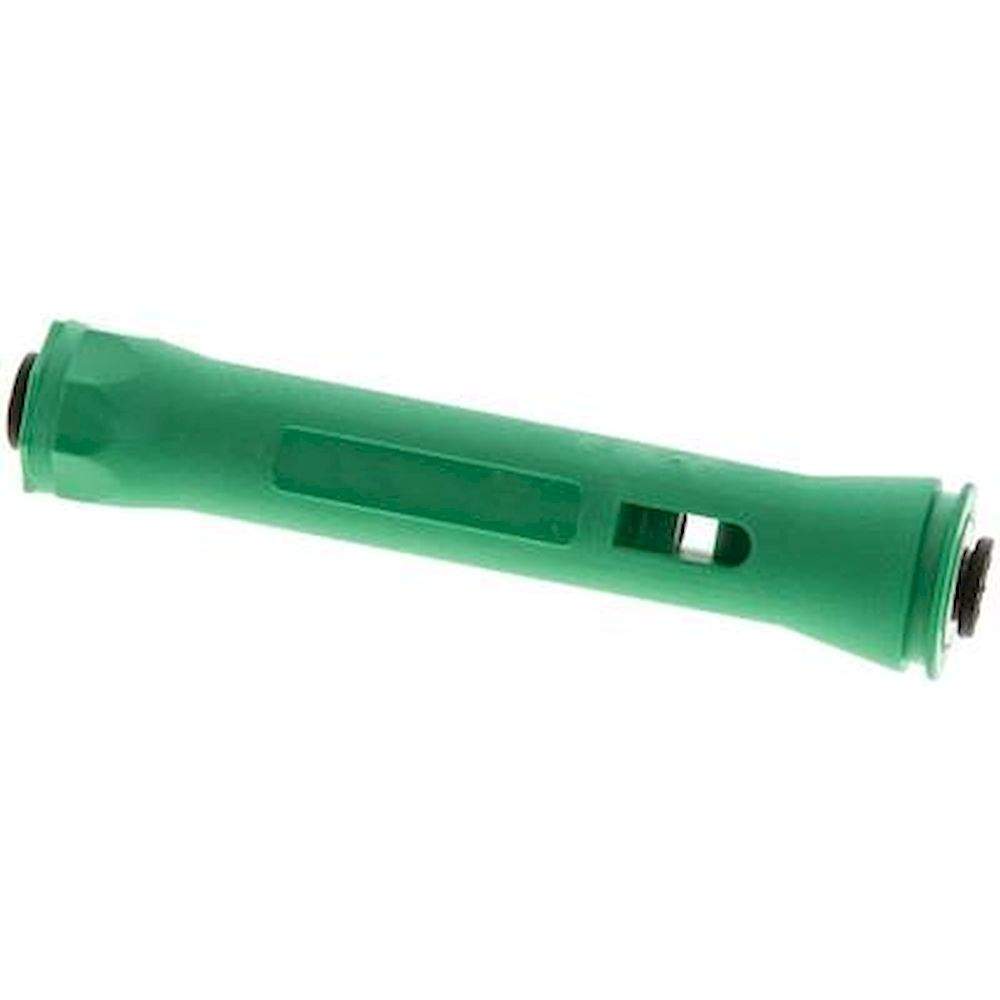

in-line vacuum ejector, 6 mm hose, max. 90 % (-0,9 bar) vacuum
€71.60
Excl. 19% VAT ,
excl. Shipping Cost

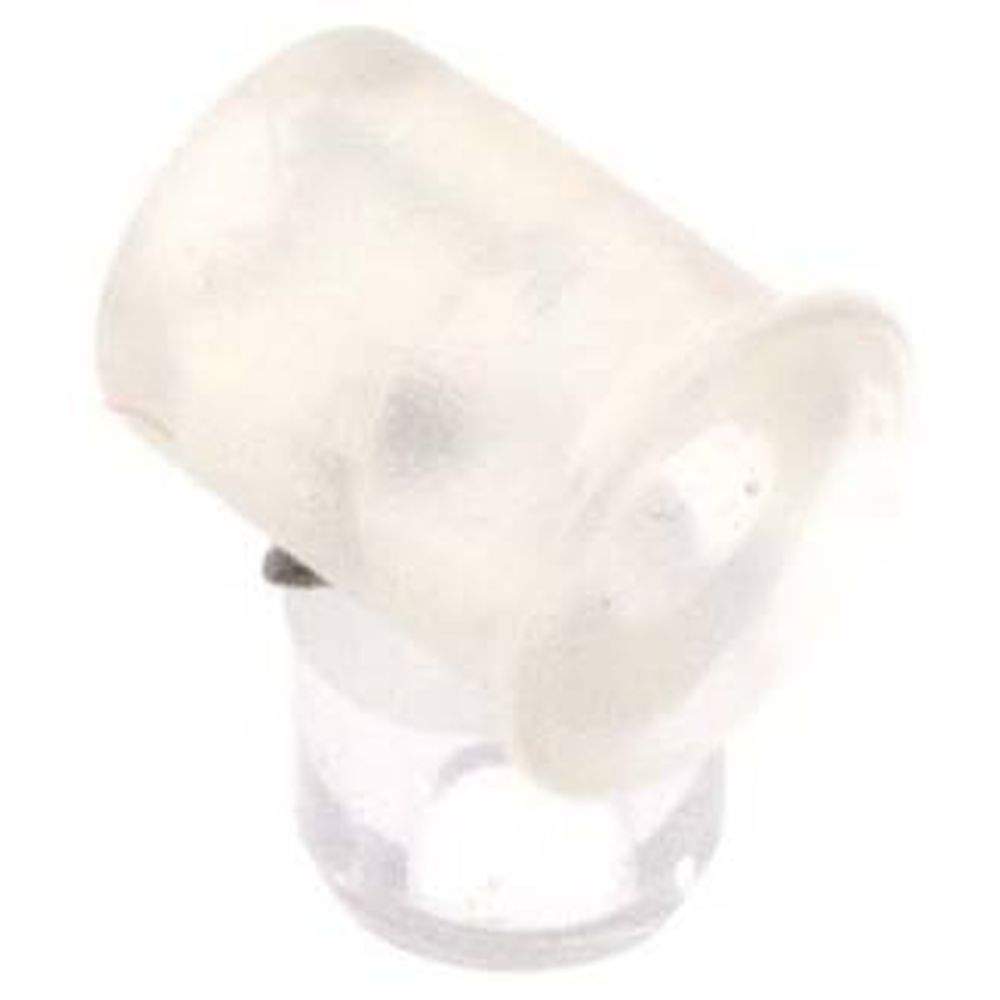

Flat suction cleaner, P-series, Ø 5x0,5mm, Silicone (50A), transparent
€4.39
Excl. 19% VAT ,
excl. Shipping Cost

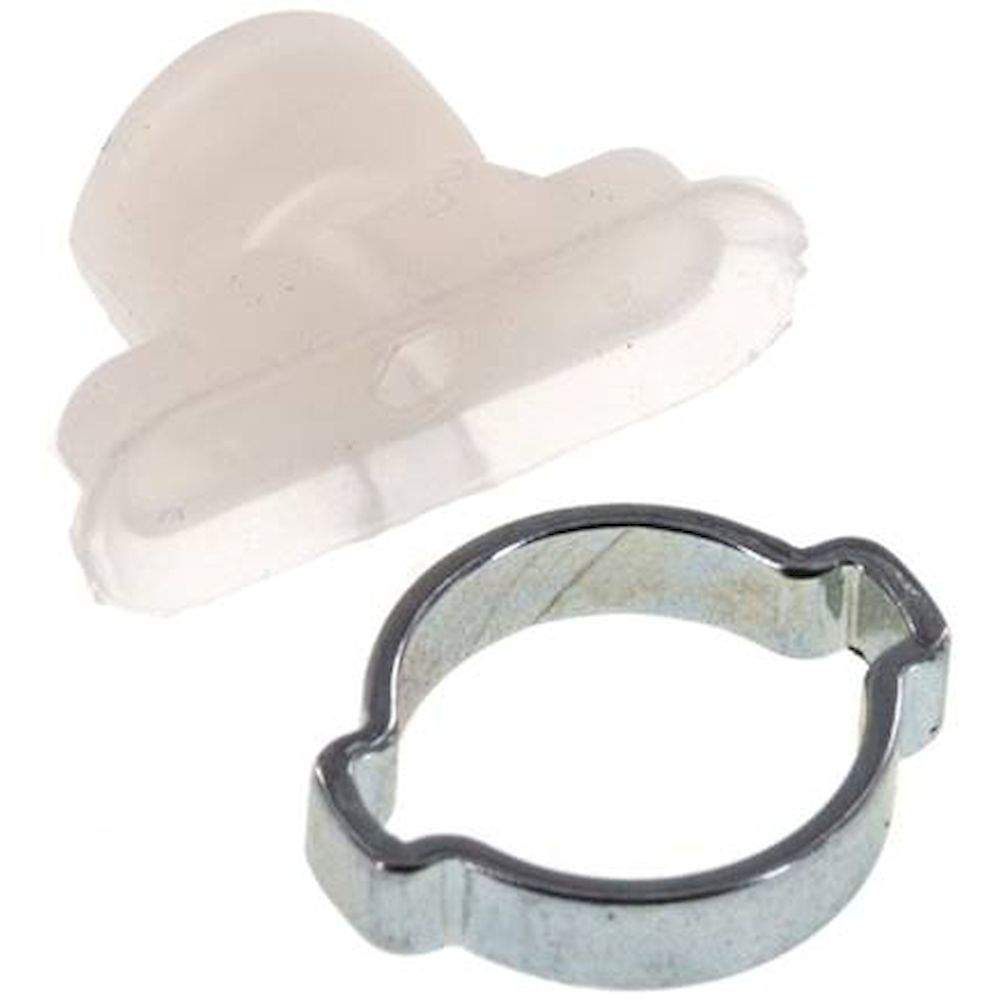

Oval teats, 24 x 8mm, stroke 1mm, Silicone (60A), transparent
