3/2-way vacuum valve, G 1/2", -0,9 to 6bar, 24 V DC
€288.38
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-067759
Manufacturer Nr.
M 312 VU 24V=
3/2-way vacuum valve, G 1/2", -0,9 to 6bar, 24 V DC
Frequently Bought Together
-
This Item:
€288.38Excl. 19% VAT , excl. Shipping Cost
-
Flat suction cleaner, P-series, Ø 11x1mm, CR (50A), black
€4.08Excl. 19% VAT , excl. Shipping Cost
-
Multi stage ejectors to 90% vacuum, G 2", to 9600 l/min
€5,375.41Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: brass, internal parts: 1.4104, seal: FKM
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (type standard: any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Pressure input:
P (type Universal: possible at every connection)
Vacuum inlet:
P (type Universal: possible at every connection)
Note:
In a standard type, the breathing takes place via the anchor (M 5 female thread).
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: brass, internal parts: 1.4104, seal: FKM
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (type standard: any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Pressure input:
P (type Universal: possible at every connection)
Vacuum inlet:
P (type Universal: possible at every connection)
Note:
In a standard type, the breathing takes place via the anchor (M 5 female thread).
Information:
These valves are always supplied with a solenoid coil and a connector plug.
| Version | Standard |
| Control voltage | 24 V DC |
| function | normally closed (NC) |
| Thread (2x) | G 1/2" |
| Operating pressure [bar] | -0.9 to 6 |
| DN [mm] | 3 |
| Suction performance [m³/h] | 5 |
| Suction performance [l/min] | 83 |
| Kv value* [l/min] | 3,3 |
| L [mm] | 60 |
| Power consumption (DC) [W] | 11 |
| Structural shape solenoid coil | A |
| Spare solenoid coil | MAG A 24V= |
| Manufacturer Nr. | M 312 VU 24V= |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571477929 |
| Weight | 6.000000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

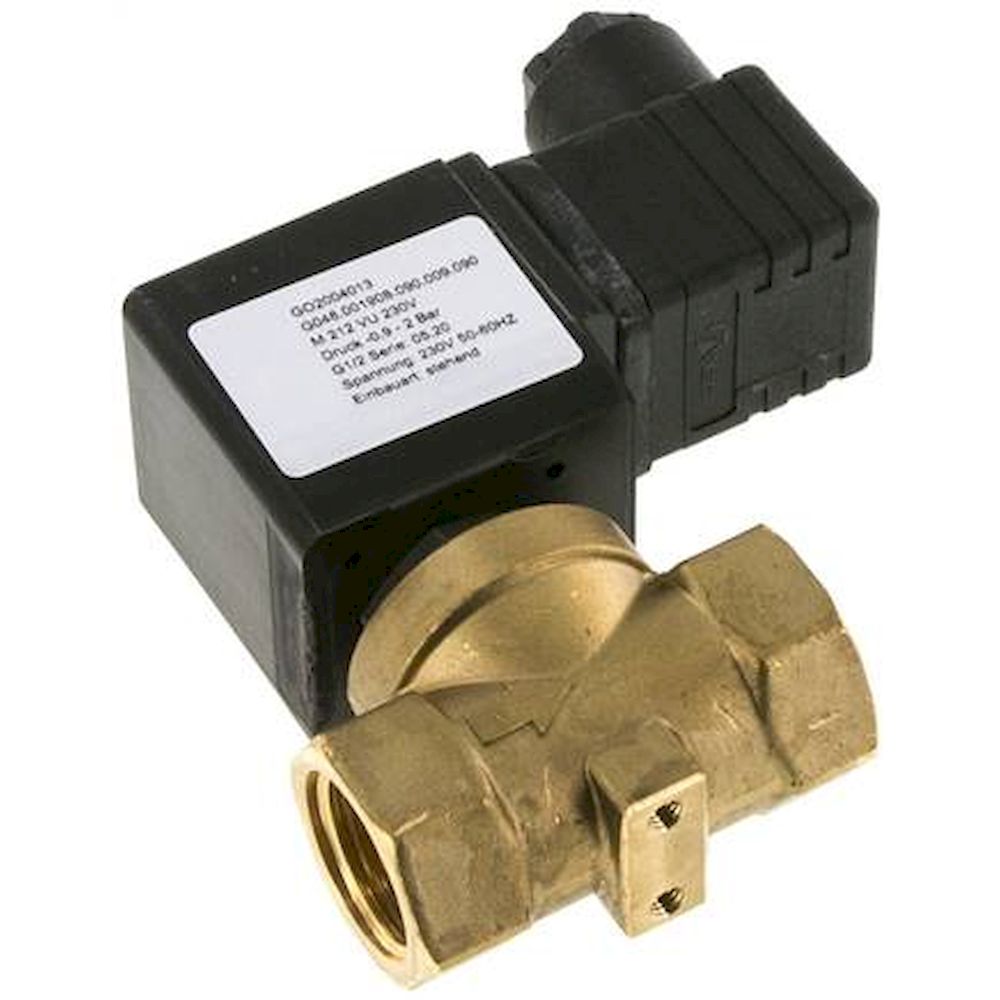

2/2-way vacuum valve (NC), G 1/2", -0,9 to 2bar, 230 V AC
€234.73
Excl. 19% VAT ,
excl. Shipping Cost
Flat suction cups (with fine lips), Ø 40x3mm, NRE (40A), brown
€15.07
Excl. 19% VAT ,
excl. Shipping Cost
Multi stage ejectors to 90% vacuum, G 2", to 2500 l/min
€2,828.89
Excl. 19% VAT ,
excl. Shipping Cost

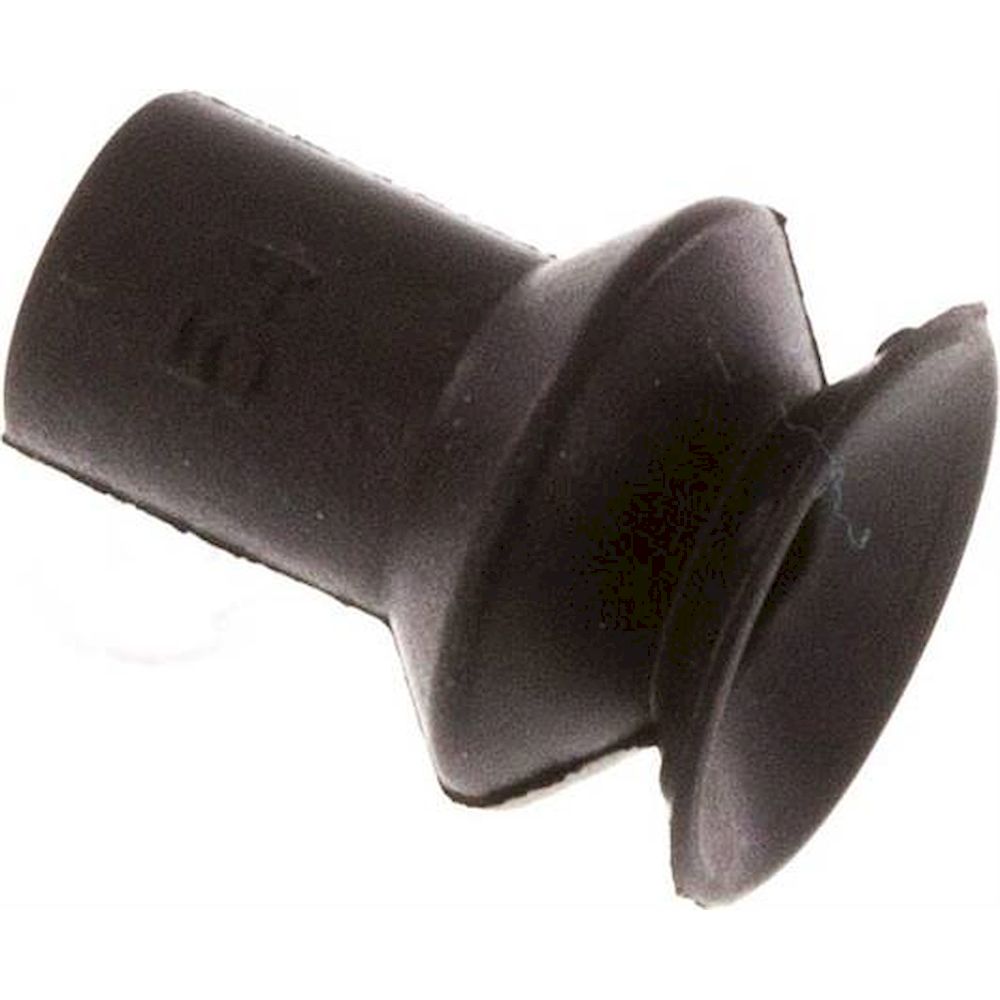

Bellows suction pad, 1,5-way, P-series, Ø 9x3,5mm, CR (60A), black
