2/2-way vacuum valve (NC), G 3/4", -0,9 to 1bar, 230 V AC
€824.81
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-067755
Manufacturer Nr.
M 234 VU 230V
2/2-way vacuum valve (NC), G 3/4", -0,9 to 1bar, 230 V AC
Frequently Bought Together
-
This Item:
€824.81Excl. 19% VAT , excl. Shipping Cost
-

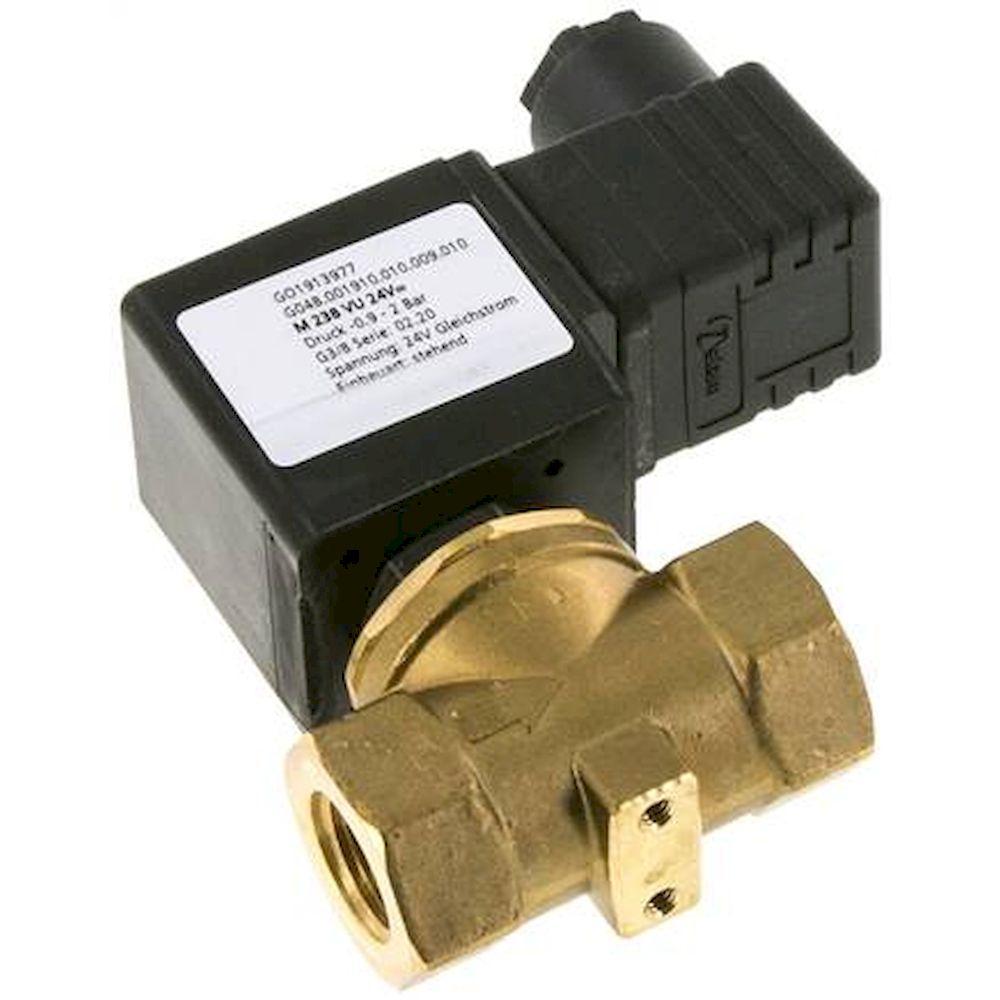

2/2-way vacuum valve (NC), G 3/8", -0,9 to 2bar, 230 V AC
€234.73Excl. 19% VAT , excl. Shipping Cost
-
Flat suction cleaner, P-series, Ø 5x0,5mm, CR (50A), black
€3.31Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: brass, internal parts: 1.4104, seal: NBR (G 1/4": FKM)
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (G 1/4": any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3, G 1": Screw terminals)
Pressure input:
P
Vacuum inlet:
A
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: brass, internal parts: 1.4104, seal: NBR (G 1/4": FKM)
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (G 1/4": any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3, G 1": Screw terminals)
Pressure input:
P
Vacuum inlet:
A
Information:
These valves are always supplied with a solenoid coil and a connector plug.
| Control voltage | 230 V AC |
| function | normally closed (NC) |
| Thread | G 3/4" |
| Operating pressure [bar] | -0.9 to 1 |
| DN [mm] | 18 |
| Suction performance [m³/h] | 90 |
| Suction performance [l/min] | 1500 |
| Kv value* [l/min] | 81,7 |
| L [mm] | 75 |
| Power consumption (AC) [VA] | 34 |
| Structural shape solenoid coil | F |
| Spare solenoid coil | MAG F 230V |
| Manufacturer Nr. | M 234 VU 230V |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571476892 |
| Weight | 2.000000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Multi stage ejectors to 90% vacuum, G 2", to 5700 l/min
€5,375.41
Excl. 19% VAT ,
excl. Shipping Cost
Flat suction cups, support rib, P,series- Ø 53x2,5mm, CR (50A), black
€26.48
Excl. 19% VAT ,
excl. Shipping Cost

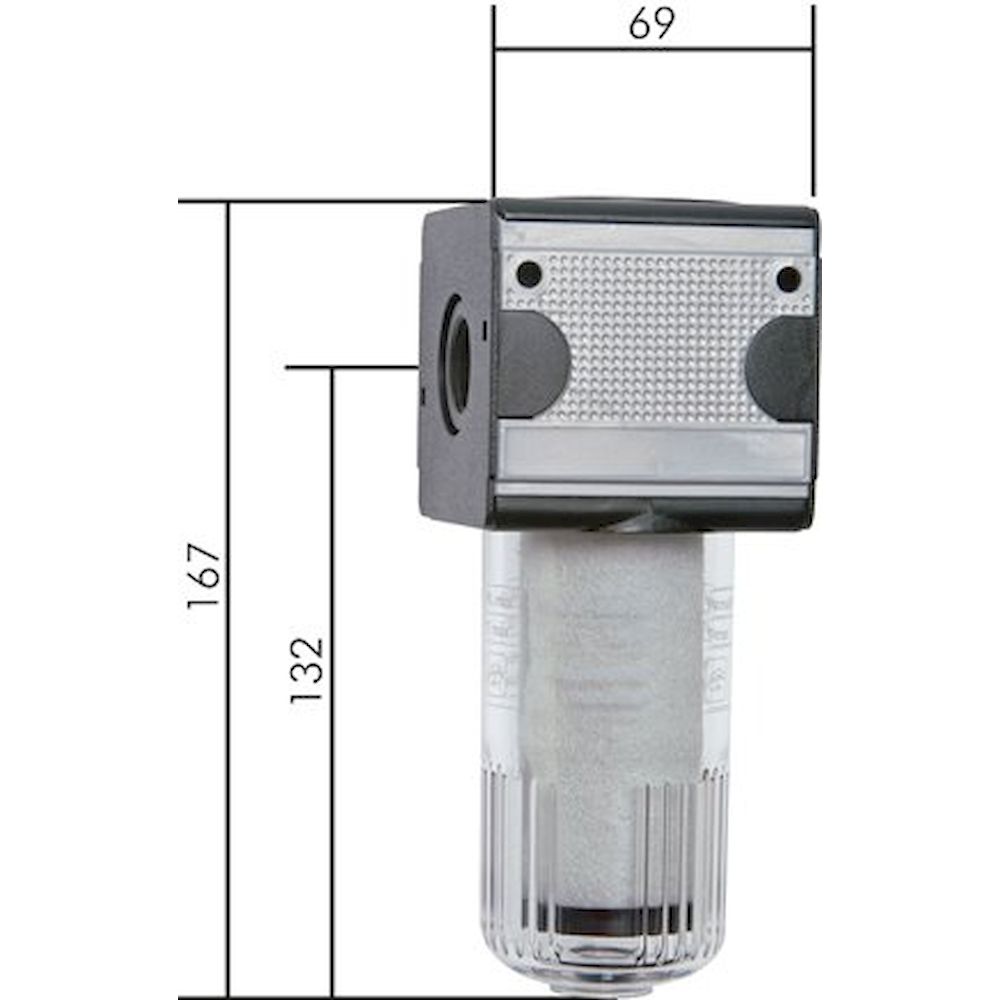

MULTIFIX vacuum filter, G 3/4", model series. 2, Plastic container
