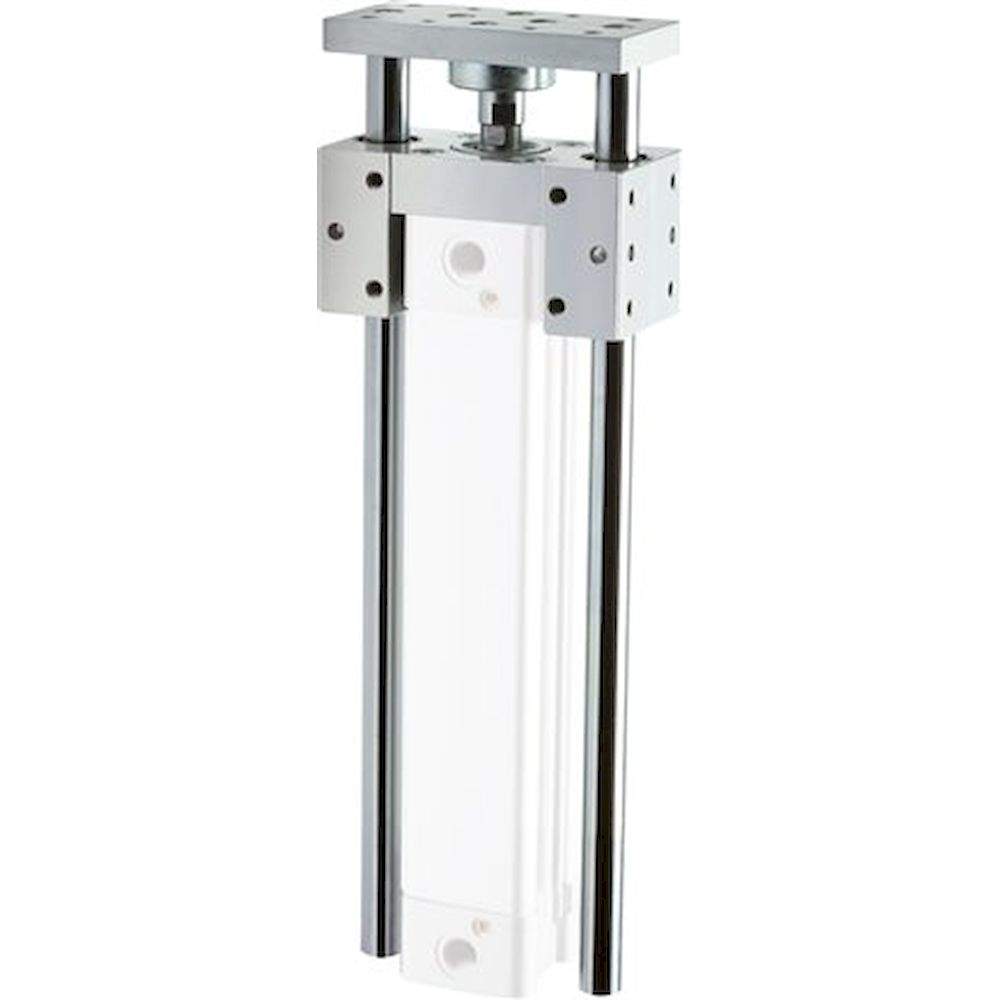

Guide unit for ISO15552-Ø 100mm, stroke 200mm
€1,162.60
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-250390
Manufacturer Nr.
LE 100/200 HK
Guide unit for ISO15552-Ø 100mm, stroke 200mm
Frequently Bought Together
-
This Item:
€1,162.60Excl. 19% VAT , excl. Shipping Cost
-
Guide unit for ISO15552-Ø 63mm, stroke 320mm
€553.13Excl. 19% VAT , excl. Shipping Cost
-
Guide unit for ISO15552-Ø 40mm, stroke 320mm
€512.63Excl. 19% VAT , excl. Shipping Cost
Total price
Function:
Guide units are used for anti-rotation safety and absorbing side forces with standard cylinders.
Materials:
Body: anodized aluminium, guide rods: hard chromium plated steel, wiper: NBR, bearing: steel or sintered bronze
Temperature range:
-30 to +100 °C
Guide units are used for anti-rotation safety and absorbing side forces with standard cylinders.
Materials:
Body: anodized aluminium, guide rods: hard chromium plated steel, wiper: NBR, bearing: steel or sintered bronze
Temperature range:
-30 to +100 °C
| Version | H with ball guide |
| for piston diameter [mm] | 100 |
| Stroke [mm] | 200 |
| MA / MB* [Nm] | 60 / 54 |
| A [mm] | 213 |
| B [mm] | 130 |
| C [mm] | 130,5 |
| CH [mm] | 26 |
| D [mm] | 55 |
| E [mm] | 30,0 |
| F [mm] | 206 |
| G [mm] | 120 |
| H [mm] | 20 |
| I [mm] | 25 |
| L1 [mm] | 290 |
| L2 [mm] | 23 |
| L3 [mm] | 128 |
| L4 [mm] | 218 |
| N [mm] | 11,0 |
| O [mm] | 20 |
| P [mm] | 18 |
| Q [mm] | 11,0 |
| S | M 10 |
| T [mm] | 150 |
| U [mm] | 150 |
| V [mm] | 89,0 |
| Z [mm] | 173 |
| Manufacturer Nr. | LE 100/200 HK |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571462987 |
| Weight | 13.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
