GRL-14-MSV. Flow control silencer G 1/4", Exhaust air flow controlling (B)

Temperature range:
-20°C to +80°C

Operating pressure:
0,2 to 10 bar

Advantages:
•compact design,
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)

Type B - exhaust regulating (standard):


Flow:
Restricted flow from thread to ring piece

Recommended use:
For cylinder from Ø 16 mm

Advantages:
•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds

Type A - supply air regulating (special version):


Flow:
Restricted flow from the ring piece to the thread

Recommended use:
For small cylinder Ø and short strokes (small volumes)

Advantages:
•even small air volumes can be controlled,
•forward and return strokes at different speeds possible

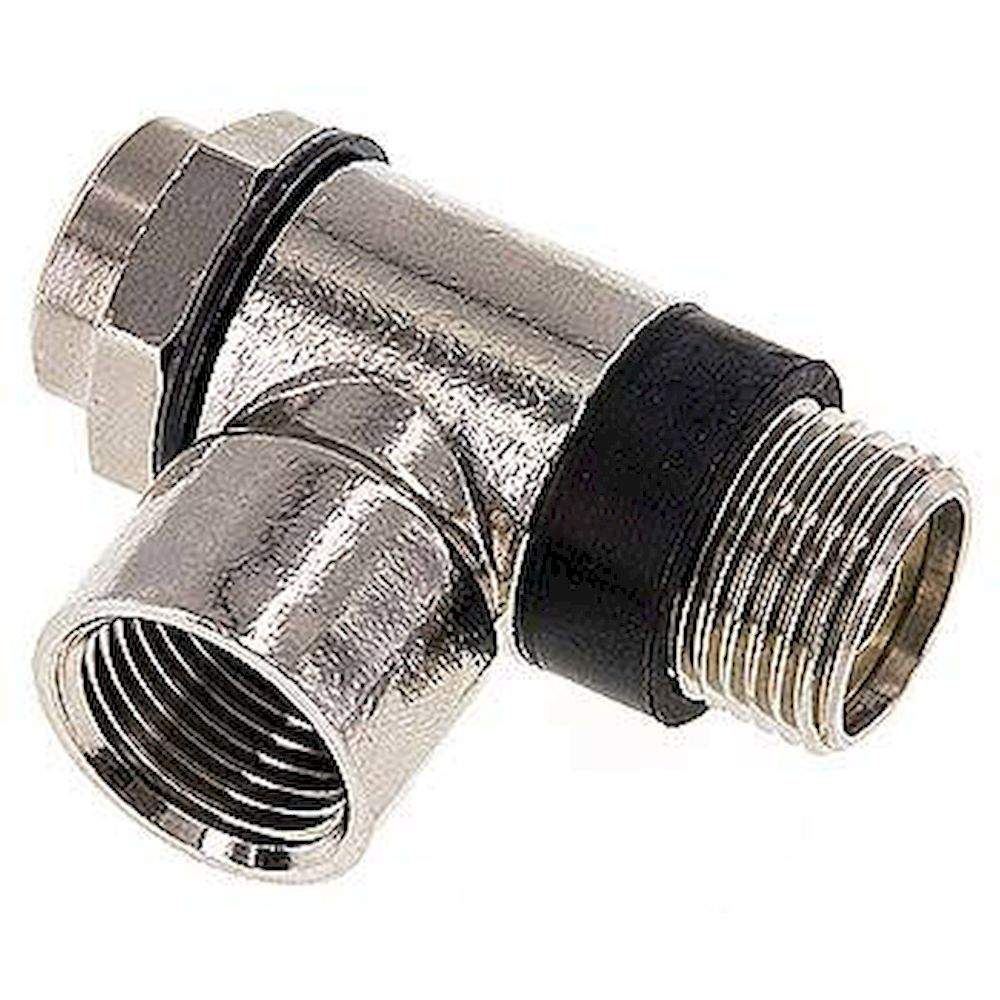

Type C - supply and exhaust air control (special version):
Flow throttled in both directions

Recommended use:
For small and single-acting cylinder

Advantages:
•Inlet and return flow same speeds

Disadvantages:
•may cause the cylinder to jump

Materials:
Banjo bolt: nickel-plated brass, banjo: nickel-plated brass, seals: NBR, sealing and spacer ring: plastic
