EMC EU 10/5. Direct assembly cylinder, Piston 10mm, stroke 5mm, Standard

Name: EMC EU 10/5. Direct assembly cylinder, Piston 10mm, stroke 5mm, Standard
Brand: E.MC
SKU: FL-EU-10/5
Price: 24.87 EUR
Availability: InStock

€24.87

Excl. 19% VAT , excl. Shipping Cost

Article

FL-EU-10/5

Manufacturer: E.MC

Manufacturer Nr.

EU 10/5

Direct assembly cylinder, Piston 10mm,stroke 5mm, Standard

Skip to the end of the images gallery

Skip to the beginning of the images gallery

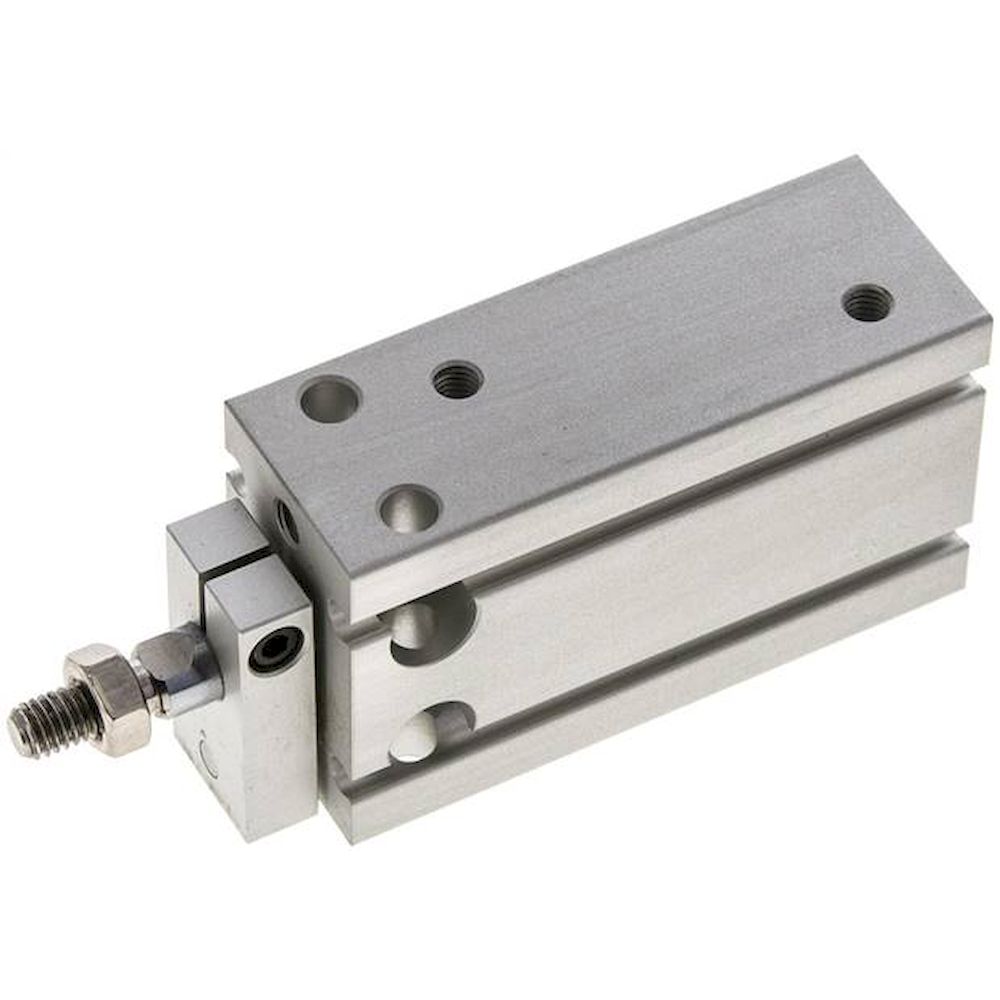

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: EMC EU 10/5. Direct assembly cylinder, Piston 10mm, stroke 5mm, Standard
€24.87
Excl. 19% VAT , excl. Shipping Cost
EMC EU 32/20. Direct assembly cylinder, Piston 32mm, stroke 20mm, Standard
€52.61
Excl. 19% VAT , excl. Shipping Cost
EMC EUK 10/25. Direct assembly cylinder, Piston 10mm, stroke 25mm, non-rotating piston rod
€38.62
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 7 bar

Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod

Cylinder switch type:
D

Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK

Piston diameter [mm]	10
Stroke [mm]	5
Version	Standard
E (piston rod thread)	M 4
G (compressed air port)	M 5
Repair sets	EU 10 REP
A1 [mm]	36
A2 [mm]	52
B [mm]	15
C [mm]	24
D [mm]	4
D1 [mm]	16
E1 [mm]	10,0
E2 [mm]	11,0
G1 [mm]	15,5
G2 [mm]	10,0
H [mm]	5.8 (4.5 deep)
H1 [mm]	3,2
H2 [mm]	11
H3 [mm]	7
H4 [mm]	9
J	M 3
J1 [mm]	18
J2 [mm]	5
