Airtec ESWP 40/25. Round cylinder, piston 40 mm, stroke 25 mm

Name: Airtec ESWP 40/25. Round cylinder, piston 40 mm, stroke 25 mm
Brand: Airtec
SKU: FL-ESWP-40/25
Price: 90.75 EUR
Availability: InStock

€90.75

Excl. 19% VAT , excl. Shipping Cost

Article

FL-ESWP-40/25

Manufacturer Nr.

ESWP 40/25

Round cylinder, piston 40 mm, stroke 25 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

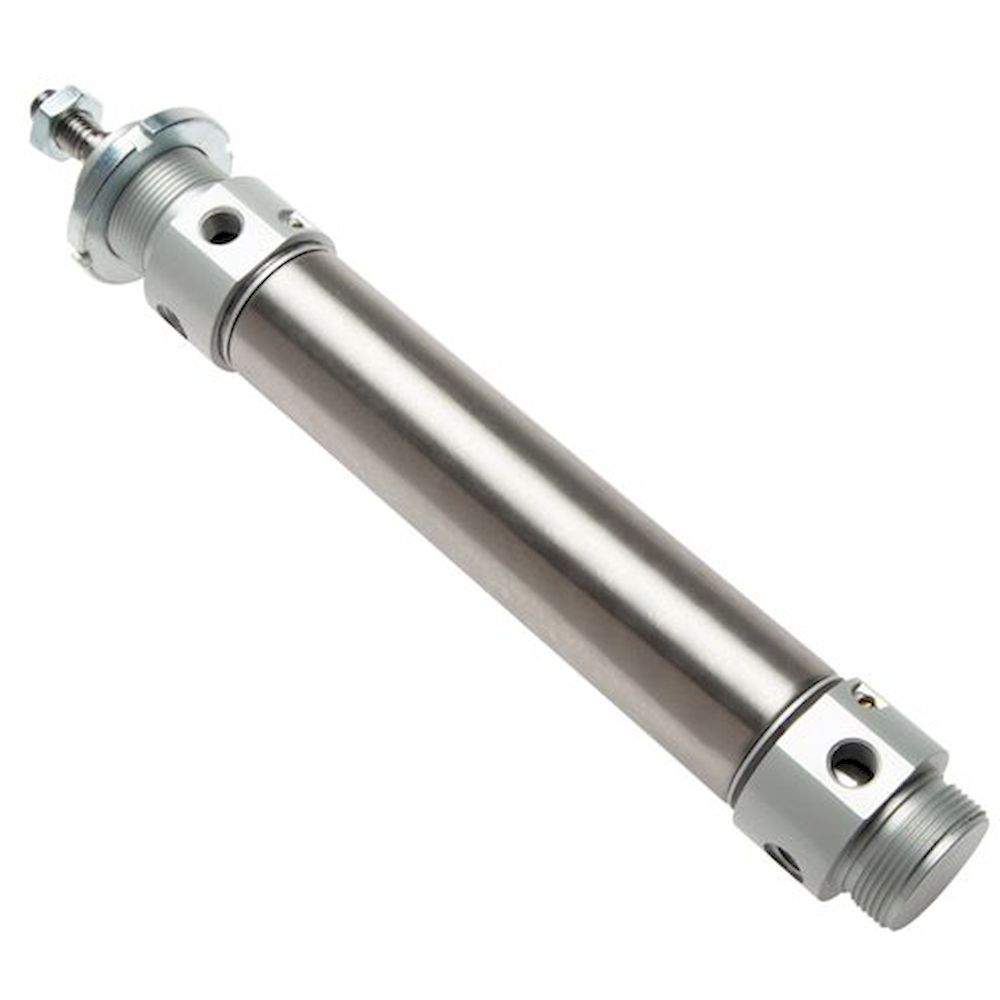

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Airtec ESWP 40/25. Round cylinder, piston 40 mm, stroke 25 mm
€90.75
Excl. 19% VAT , excl. Shipping Cost
Airtec DSWPM 50/200. Round cylinder, piston 50 mm, stroke 200 mm
€177.16
Excl. 19% VAT , excl. Shipping Cost
Airtec DSWP 63/250. Round cylinder, piston 63 mm, stroke 250 mm
€99,999.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: hard chromium plated steel, seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1

Piston diameter [mm]	40
Stroke [mm]	25
Version	single-acting, no magnetic piston
A (piston rod thread)	M 12
B (fastening thread)	M 38x1,5
G (compressed air port)	G 1/4"
B1 [mm]	8
B2 [mm]	42
D1 [mm]	50
D2 [mm]	16
D4 [mm]	46
D5 [mm]	38
D6 [mm]	41,6
D7	M 10x1
F [mm]	24
K [mm]	45
L1 [mm]	172
L2 [mm]	57
L3 [mm]	87
L4 [mm]	35
L5 [mm]	16
CH [mm]	12
