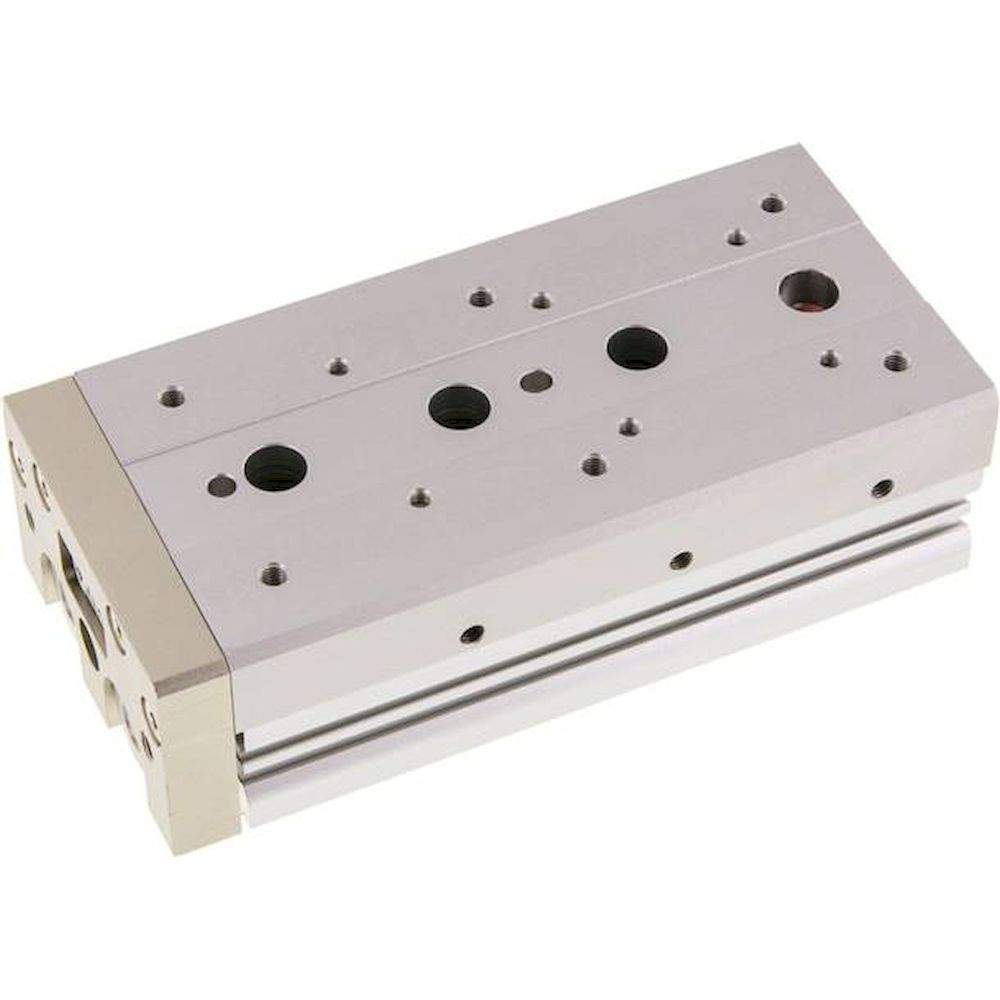

EMC ELS 25/100-AS. Compact carriages, pistons 25mm, stroke 100mm, with stroke limitation for deploying (fixed stop)

Materials:
Body and plate: Anodized aluminium, piston rods: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 7 bar

Piston speed
50 - 500 mm/s

Version:
With Magnetic piston

Optional:
with stroke limitation (fixed stop) while deploying (-10 mm) -AS*, with stroke limitation (fixed stop) retracting (-10 mm) -AT*, with stroke limitation (fixed stop) on both sides (-20 mm)-A*, with stroke limitation (shock absorber) while deploying (not Ø 6, Ø 8: -20mm, Ø 12: -18 mm, Ø 16 & 20: -25 mm, Ø 25: -35 mm) -BS*, with stroke limitation (shock absorber) while retracting (not Ø 6, Ø 8: -20 mm, Ø 12: -18 mm, Ø 16 & 20: -25 mm, Ø 25: -35 mm) -BT*, with stroke limitation (shock absorber) on both sides (not Ø 6, Ø 8: -40 mm, Ø 12: -36 mm, Ø 16 & 20: -50 mm, Ø 25: -70 mm) -B*

Cylinder switch type:
D

Advantages:
•high rigidity,
•numerous fastening options,
•position holes for accurately repeatable workpiece mounting,
•stroke adjustable by stroke limiters (as fixed stop or shock absorber),
•main installation dimensions identical to SMC Series MXS

Piston diameter [mm]	25
Stroke [mm]	100
Stroke (adjustment range) [mm]	90 - 100
Version	with stroke limitation for deploying (fixed stop)
G (compressed air port)	G 1/8"
Repair sets	ELS 25 REP
A [mm]	86
B [mm]	86
BA [mm]	38
BB [mm]	22,0
BC [mm]	7,0
BD	M 6
BD1 [mm]	10,0
BE [mm]	38
C [mm]	62
CA [mm]	56,5
F [mm]	70
FA [mm]	56
FB [mm]	30
FC (+0.03 / -0.2) [mm]	6 (6 deep)
FD [mm]	7
FE	M 6
FE1 [mm]	13,0
FF [mm]	70
H [mm]	35
HA [mm]	70
HB [mm]	102
HC [mm]	32
HE	M 8
HE1 [mm]	8
HF [mm]	6,8
KA [mm]	70
KB [mm]	31
KC	M 8
KC1 [mm]	15
L [mm]	25,0
LA [mm]	12,0
LB [mm]	33,5
LC [mm]	16,0
LD [mm]	33,0
LE [mm]	15,0
LF [mm]	9,0
LG [mm]	16,5
LH [mm]	16,0
LJ [mm]	4
LK [mm]	8,00
LM [mm]	7,5
LN [mm]	17,0
LO	M 8
LO1 [mm]	8,5
LP	M 8
LP1 [mm]	8,0
M [mm]	197
MA [mm]	15
N	6x
N1	5x
N2	6x
Z [mm]	195,5
