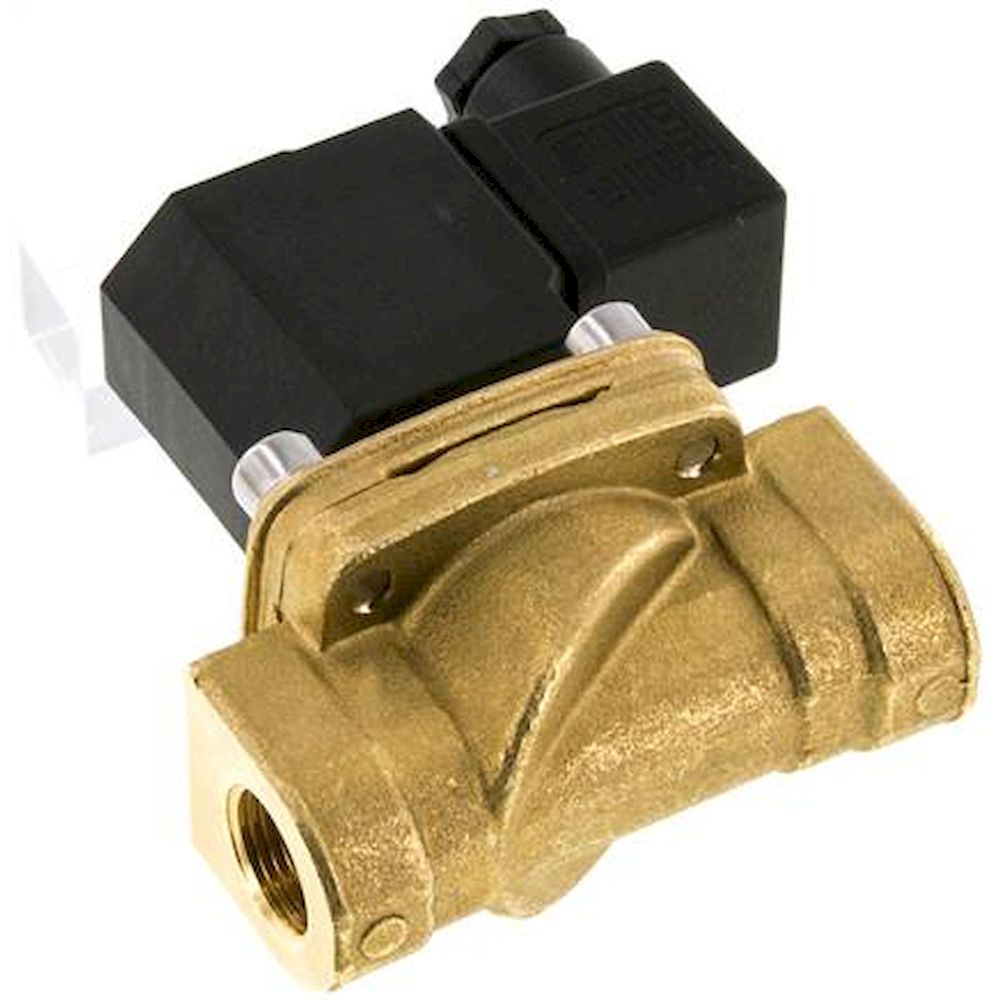

E.MC ELP-34-V-230V. 2/2-way solenoid valve G 3/4", closed (NC) without power,FKM Eco

Materials:
Body: brass, internal parts: brass / stainless steel, seal: NBR (types G 1/8" & G 1/4": FKM)

Temperature range:
-10°C up to max. +80°C (types G 1/8" and G 1/4": -10°C up to max. +130°C), ambience: max. +50°C

Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request

Installation position:
With upright magnets

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Optional:
FKM seal (-10°C to max. +130°C) -V, EPDM seal for air and warm water (-10°C to max. +120°C) -EP

Information:
These valves are always supplied with a solenoid coil and a connector plug.

Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
