Airtec DSWPVM 40/100. Round cylinder, piston 40 mm, stroke 100 mm

Name: Airtec DSWPVM 40/100. Round cylinder, piston 40 mm, stroke 100 mm
Brand: Airtec
SKU: FL-DSWPVM-40/100
Price: 148.69 EUR
Availability: InStock

€148.69

Excl. 19% VAT , excl. Shipping Cost

Article

FL-DSWPVM-40/100

Manufacturer Nr.

DSWPVM 40/100

Round cylinder, piston 40 mm, stroke 100 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Airtec DSWPVM 40/100. Round cylinder, piston 40 mm, stroke 100 mm
€148.69
Excl. 19% VAT , excl. Shipping Cost

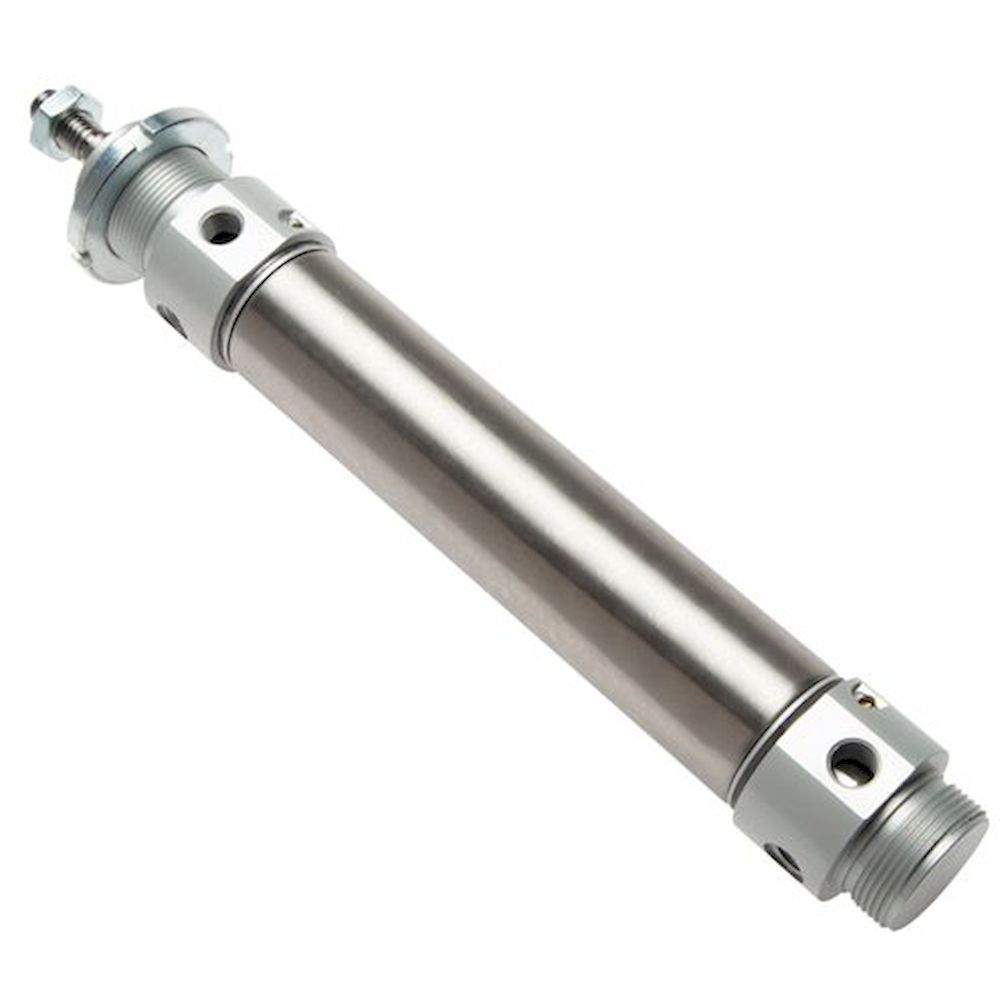

Airtec DSWPVM 63/320. Round cylinder, piston 63 mm, stroke 320 mm
€288.33
Excl. 19% VAT , excl. Shipping Cost
Airtec DSWPM 40/160. Round cylinder, piston 40 mm, stroke 160 mm
€138.61
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: hard chromium plated steel, seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1

Piston diameter [mm]	40
Stroke [mm]	100
Version	adjustable end position damping
A (piston rod thread)	M 12
B (fastening thread)	M 38x1,5
G (compressed air port)	G 1/4"
B1 [mm]	8
B2 [mm]	42
D1 [mm]	50
D2 [mm]	16
D4 [mm]	46
D5 [mm]	38
D6 [mm]	41,6
D7	M 10x1
F [mm]	24
K [mm]	45
L1 [mm]	172
L2 [mm]	57
L3 [mm]	87
L4 [mm]	35
L5 [mm]	16
CH [mm]	12

More Information
Manufacturer Nr.	DSWPVM 40/100
Manufacturer	Airtec
EAN	4050571276195
Weight	11.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
