Airtec ZDM 8/10. ISO 6432 cylinders, double acting, piston 8 mm, stroke 10 mm
27,25 €
Excl. 19% VAT ,
excl. Shipping Cost
Artículo
FL-ZDM-8/10
Número del fabricante
ZDM 8/10
ISO 6432 cylinders, double acting, piston 8 mm, stroke 10 mm
Comprados con frecuencia juntos
-
Este artículo:
27,25 €Excl. 19% VAT , excl. Shipping Cost
-
Airtec ZDPM 25/100. ISO 6432 cylinders, double acting, piston 25 mm, stroke 100 mm
47,07 €Excl. 19% VAT , excl. Shipping Cost
-
EMC ZDPM 20/50 E. ISO 6432 cylinders, double acting, piston 20 mm, stroke 50 mm
34,41 €Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X
| Número del fabricante | ZDM 8/10 |
|---|---|
| Fabricante | Airtec |
| EAN | 4050571812348 |
| Peso | 4.000000 |
| Número de arancel | 84123100 |
| Autenticidad del artículo | Producto original |
| Estado del artículo | Nuevo |
Los clientes que compraron este artículo también compraron
EMC ZDM 25/320 E. ISO 6432 cylinders, double acting, piston 25 mm, stroke 320 mm
39,28 €
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDPM 20/200. ISO 6432 cylinders, double acting, piston 20 mm, stroke 200 mm
46,91 €
Excl. 19% VAT ,
excl. Shipping Cost

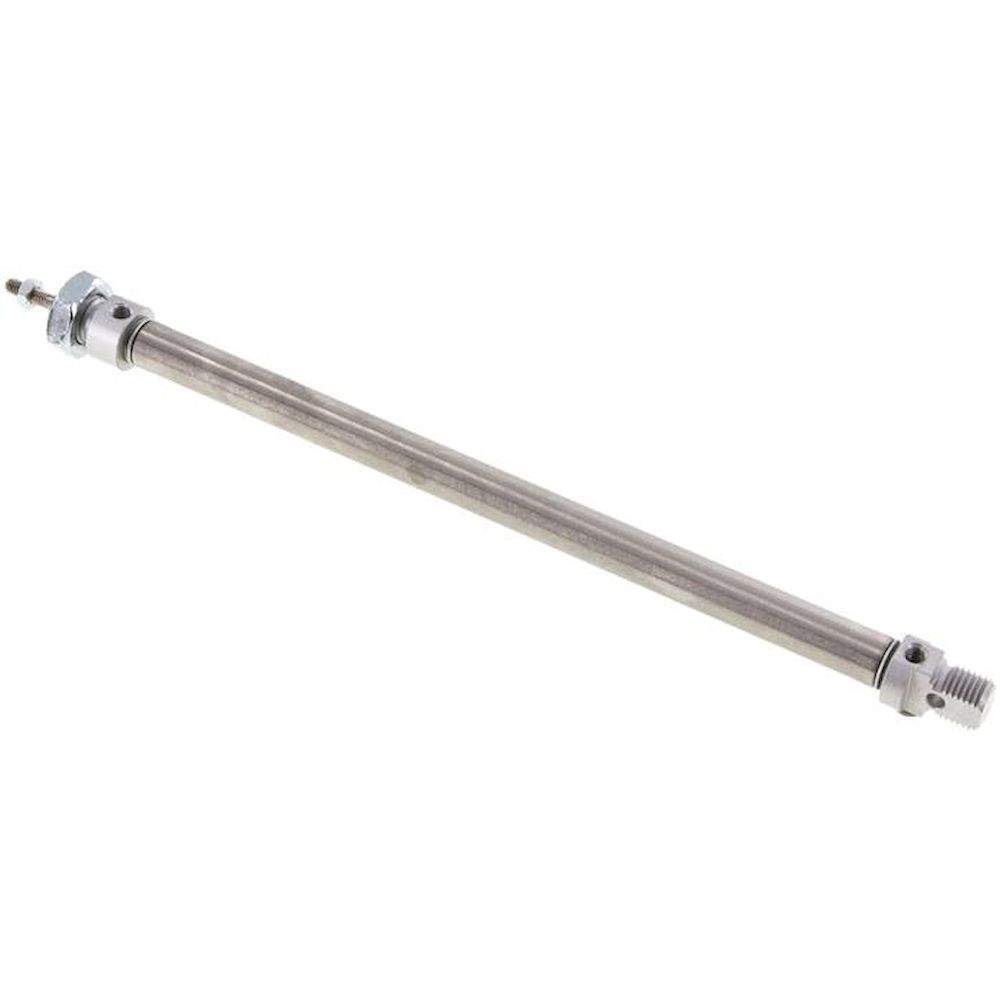

Airtec ZDM 10/160. ISO 6432 cylinders, double acting, piston 10 mm, stroke 160 mm
